Sinowon digital hardness testing machine directly sale for small parts

Company Advantages
1. Such features of microindentation hardness testing has occupied a large area in the popular dictionary of digital hardness testing machine product design. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
2. With the help of this product, large scale production is possible with less investment in less time. It could be a valuable asset for the company. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. The product features high dimension accuracy. During the inspection stage, its sizes have been scrutinized and tested by different measuring tools to make sure zero dimension error. Imported materials and accessories are used in product manufacturing
4. This product has the required hardness. It can withstand the tedious work required while achieving continuous dynamic accuracy and repeatability. It, up to the requirements from different industries, is widely applied
5. This product is anti-wrinkle. The twist of the yarn is professionally treated to an appropriate level to enhance the stretchability and elasticity of the yarn. Its packing is made seriously to guarantee the safety during shipment

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, max loading force at 1Kgf(Vicky MHV-1000).

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error. MV series vickers software is recommended, includes USB camera, C-mount adapter and computer.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

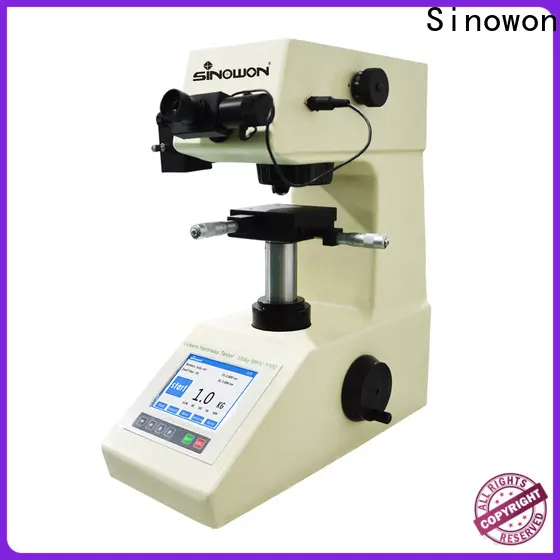

Product Name		Color Touch Screen Digital Micro Vickers Hardness Tester
Model		Vicky MHV-1000
Code#		823-160
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Lens & Indenter Switch		Auto Turret
Data Transfer		Bluetooth；RS232 is optional
Hardness Resolution		1HV
Measuring Range		1HV~2967HV
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Hardness Conversion		HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB
Eyepiece		10x Digital Eyepiece
Dwell Time		Adjustable 5~60s
X-Y Anvil		Size：100*100mm；Travel：25*25：Resolution：2um
Illumination		LED Cold Light（Brightness adjustable）
Display		5.2" Touch Screen, Resolution 640*480
Conversion Standard		ASTM、DIN
Language		Chinese, English, German, Portuguese, Turkish,  Czech, Korean
Max Height of Specimen		70mm
Instrument Throat		95mm
Power Supply		AC220V/50Hz
Dimension/Packing Dimension		478 x 162 x 518mm/500 x 490 x 700mm
Gross/Net Weight		45Kg/35Kg
Conform standards		GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is the largest digital hardness testing machine mold production base in China.
2. We’re proud to supply products to many outstanding consumer product companies whose brands are well known across the world. We gain their confidence and loyalty.
3. Sinowon Innovation Metrology Manufacture Limited. will strive to be recognized by the society, and become a national champion for producing micro vicker hardness tester . Get quote!
