Sinowon digital optical projector series for precision industry

Model:
PH400-3015
Code#:
512-400
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon types of profile projector has been strictly tested. It is inspected on the compatibility of different agents formulation such as coagulant, sterilizing agent, and anti-sludging agent. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. The product plays a pivotal role in different industries, reducing the number of workers and helping to reduce human capital costs. The product is well known for high accuracy and great stability
3. Before shipment, we will conduct various types of tests to check the quality of this product. The product performs well in program control and material use reduction


Sinowon digital optical projector series for precision industry 7



Product Feature


The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

Coating process reflector, clearer image and great dustproof;

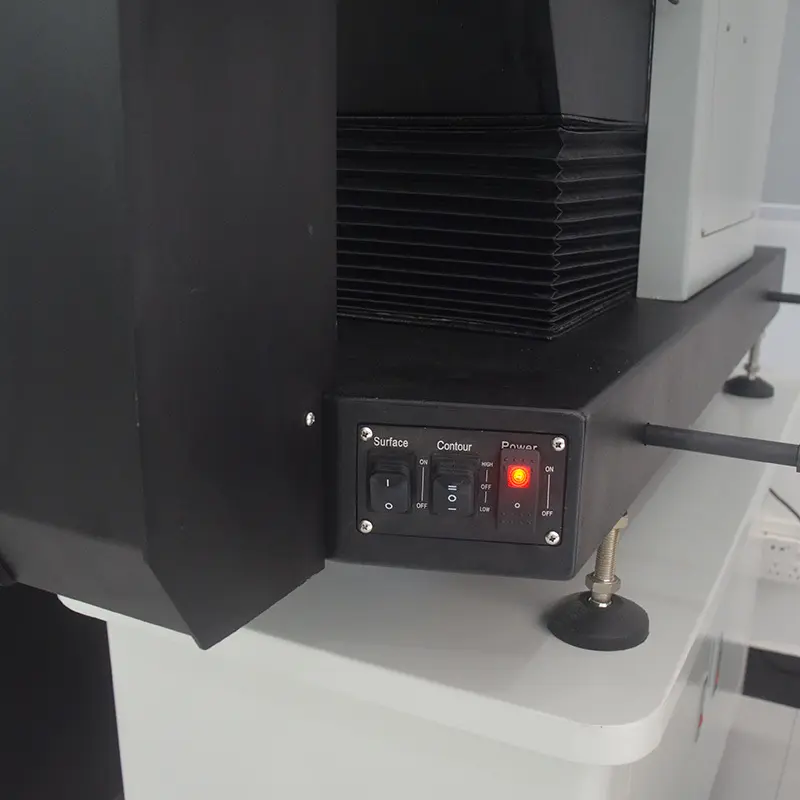

Adjustable contour and surface illumination, to meet with difference workpiece demand;

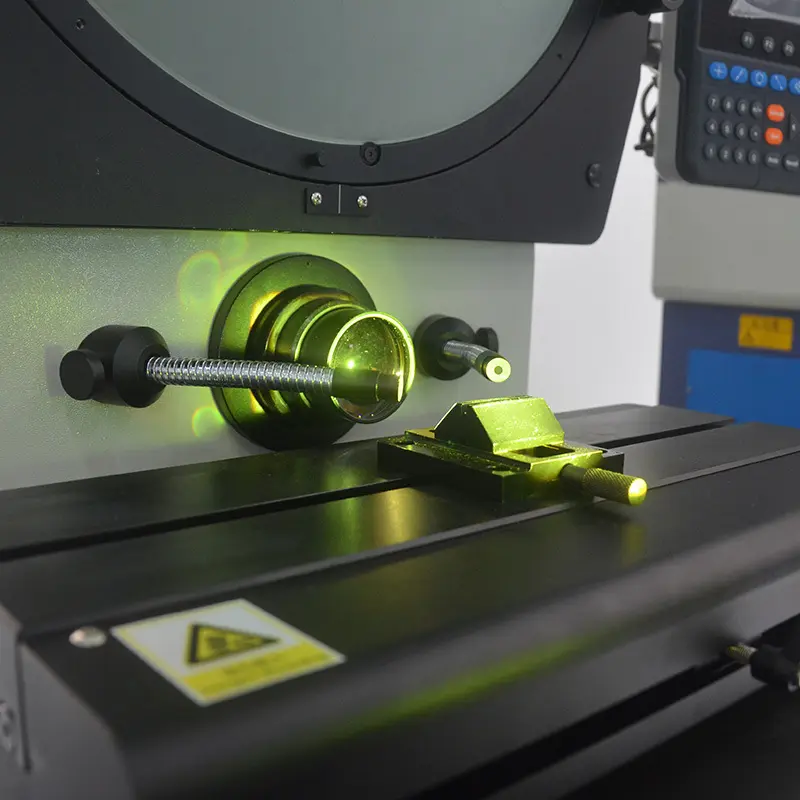

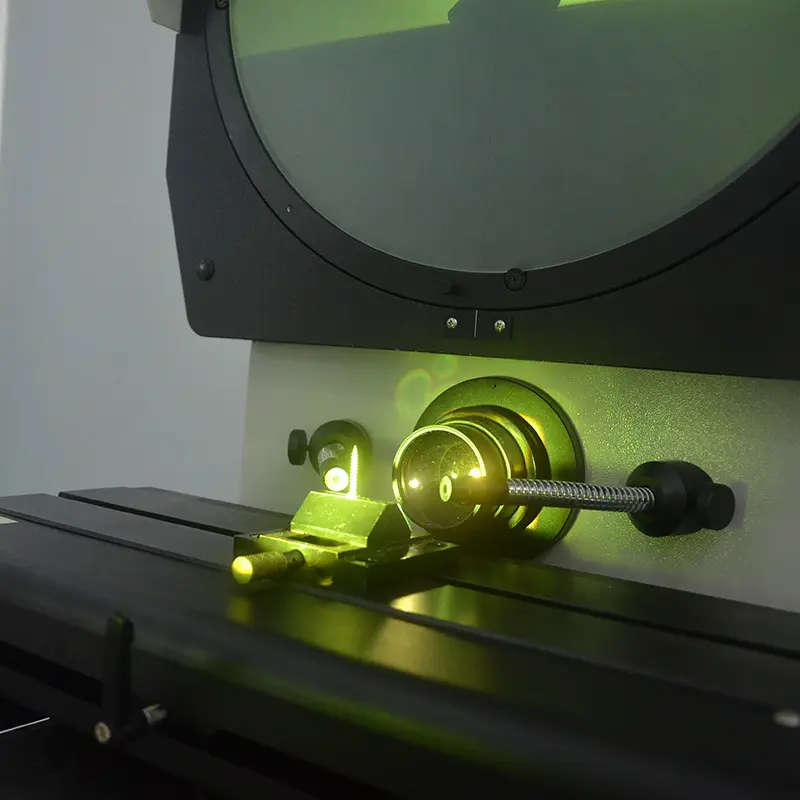

Imported high light and long using life LED illumination ,to ensure precision measurement demand;

High resolution optical system with clear image and magnification error is less than 0.08%;

Powerful Bi-axial fan cooling system,highly increase using life;

Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

Built-in Mini-printer, can print and save data;

With standard 10X objective, optional 5X,20X,50X objective,rotary table, foot switch ,clamp, etc.


Specification

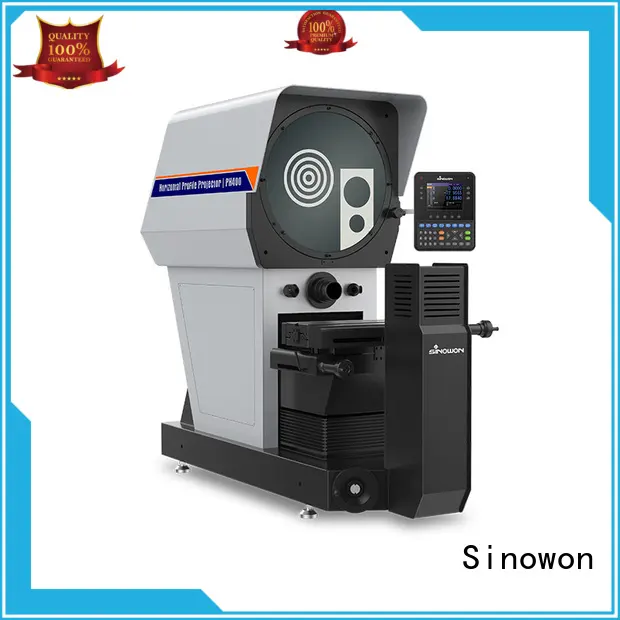

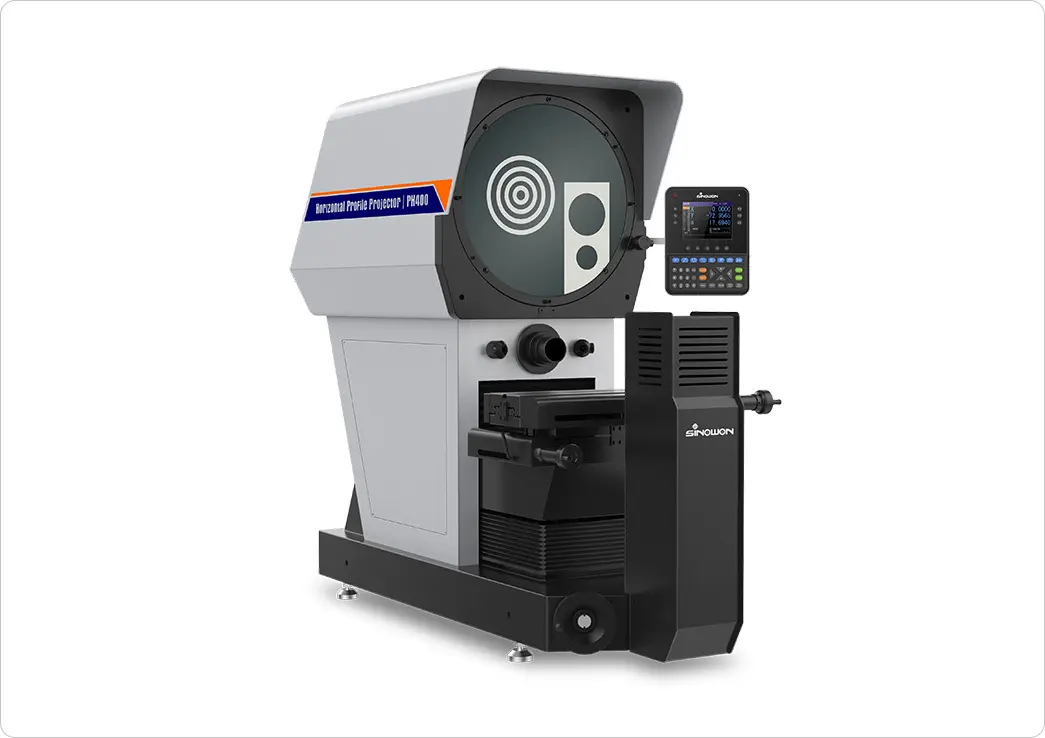

Product NameØ400mm Digital Horizontal Profile Projector
ModePH400-3015
Code #512-400
Working Stage Size455x126mm
Working Stage Travel300x150mm
Focusing120mm
Accuracy≤3+L/200(um)
Resolution0.0005mm
Loading Weight15Kg
ScreenDia:412mm,Measurement Range ≥ Ø400
Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’
Digital ReadoutDP400 (510-340)Multifunction colorful LCD digital readout
IlluminationContour Illumination:3.2V/10W LED  Surface Illumination:220V/130W
Working EnvironmentalTemp:20℃±5℃,Humidity:40%-70%RH
Power SupplyAC110V/60Hz; 220V/50Hz,200W
Dimension (L×W×H)1455 x633 x1199 mm
Package Dimension(L×W×H)1630x780x1500mm
Gross/Net Weight350/300kg


Optional Objectives


Magnification5X10X20X50X
Field of Viewφ80mm φ30mm φ15mm φ6mm
Working Distance75mm75mm69mm44mm


Product Details



Sinowon digital optical projector series for precision industry 8
Sinowon digital optical projector series for precision industry 9
Sinowon digital optical projector series for precision industry 10
Sinowon digital optical projector series for precision industry 11




Company Features
1. As a optical projector brand, Sinowon enjoys a high reputation at home and abroad. Our products are sold on an international scale, which brings consistent and attractive revenue growth. We are able to meet our underlying revenue growth target each year.
2. Our factory possesses efficient and complete management mechanisms and has passed the ISO9001 quality management system. The mechanisms and system offer a strong assurance to all the product quality.
3. We have a quality and product assurance team. They can perform product life testing to ensure that designs meet or exceed required specifications. Looking ahead, we will always treat others with dignity, act with honesty, and maintain the highest level of integrity. Check now!
