Sinowon efficient computer vision models with good price for industry

Company Advantages
1. The quality of Sinowon machine vision technology is guaranteed. Its PV system and the solar modules are rigorously scrutinized to meet the requirements of solar products. The product is analyzed and tested cautiously before packing
2. The use of this product helps achieve large-scale production and can reduce costs to levels never dreamt of before. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
3. The product has the advantage of strong compatibility. It can perfectly work with other mechanical systems to bring out the best results. A team of experienced talents is gathered to support the product sales
4. This product is scratch resistant. A high-quality surface finish is applied to offer an acceptable level of resistance to being scratched or chipped. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology

◆ Precision optical design, high resolution, low distortion, excellent optical performance.

◆ Super long working distance, big FOV range.

◆ Multiply coating technology, reduce the stray light and ghost, offering high quality image.

◆ Anodized metal part, improved endurance.

◆ Compact and reliable structure.

Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.

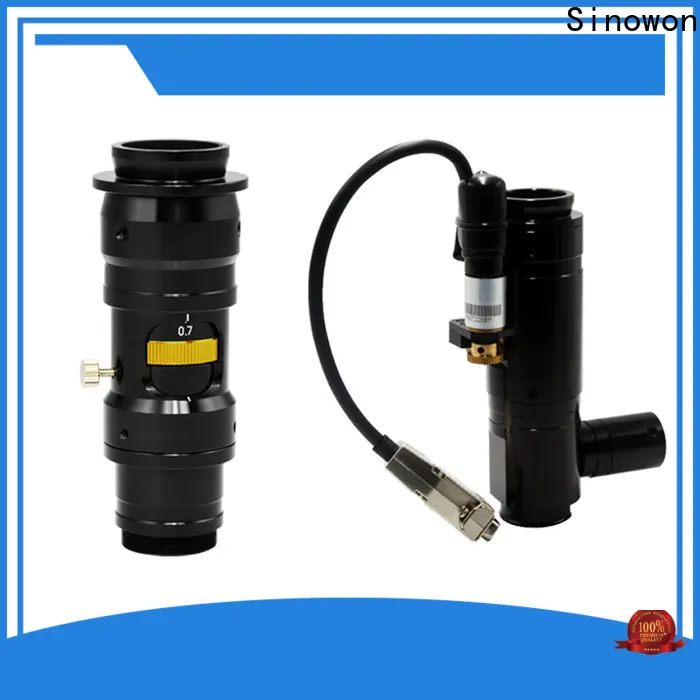

Model

Zoom745

Zoom745C

Zoom745D

Zoom745DC

Zoom745M

Zoom745HC

Type

Zoom Lens

Coaxial Illumination Zoom Lens

Detented Zoom Lens

Detented With Coaxial Illumination

Motorized Zoom

Motorized Zoom Lens With Coaxial Illumination

Zoom Control

Manual Zoom

Manual Zoom

Manual Zoom

Manual Zoom

Motorized Zoom

Motorized Zoom

Optical Magnification

0.7X~4.5X

Working Distance

90±2mm

80±2mm

Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

DOF（mm）

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.No.

11.6

2.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution （um）

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%

FOV（mm） DxHxV

2/3"

15.71x12.57x9.43

11.00x8.80x6.60

7.33x5.87x4.40

5.50x4.40x3.30

4.40x3.52x2.64

3.67x2.93x2.20

3.14x2.51x1.89

2.75x2.20x1.65

2.44x1.96x1.47

1/2"

11.43x9.14x6.86

8.00x6.40x4.80

5.33x4.27x3.20

4.00x3.20x2.40

3.20x2.56x1.92

2.67x2.13x1.60

2.29x1.83x1.37

2.00x1.60x1.20

1.78x1.42x1.07

1/3"

8.57x8.86x5.14

6.00x4.80x3.60

4.00x3.20x2.40

3.00x2.40x1.80

2.40x1.92x1.44

2.00x1.60x1.20

1.71x1.37x1.03

1.50x1.20x0.90

1.33x1.07x0.80

Max.Sensor Size

2/3"

Mount

C-Mount

Coaxial Illumination

1. Infinity parallel incident light, with shadow-free and uniform illumination.

2. Coaxial illumination structure ensure even illumination.



Detented zoom lens

1. Mechnical positiong structure, high accuracy in zoom and repetitive positioning

2. 15-divided points for mechanical positioning

3. High hardness alloy material, for a long lifespan;Precision mechanical structure.

Motorized Zoom

1.High speed in zoom and focus and high accuracy in repetitive positioning; Imported DC servo motor, closed loop control.

2.Single or double motor control system via 9-PIN RS232.

3.Stable quality performance even in the strong vibration environment.

Fine-focus Device

1. Used in narrow space, adjust fine-focus part for focusing on different height surface of parts, no need to change WD;

2. Fine focus range: 3mm-12mm;

3. Manual and motorized structure.

Company Features
1. Since inception, Sinowon Innovation Metrology Manufacture Limited. has been one of the leading machine vision technology suppliers, focusing on design, production, and sales & marketing.
2. We have the capability of researching and developing state-of-the-art technologies of computer vision models .
3. We grow together with our local communities. By giving support to the local economy, such as taking part in financing activities and blending into the industrial clusters, we always play an active role.
