Sinowon elegant buffing disc for grinder with good price for LCD

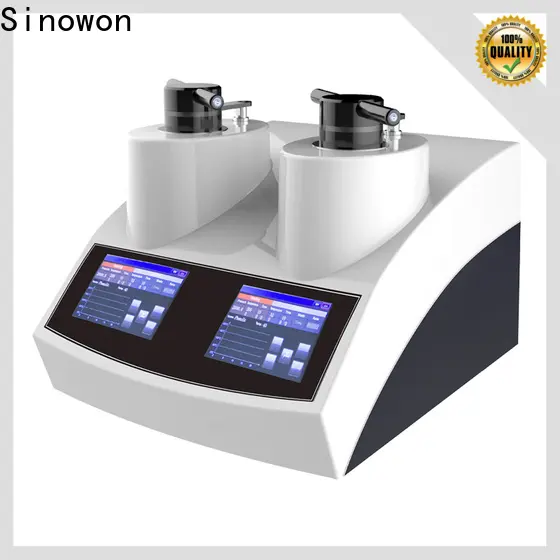

Product Feature
◆ Easy to use. One button start, automatic pressure loading, heating and cooling;
◆ High efficiency. New design of heating and cooling units significantly reduce the cycle time. Usually, the cycle time for 30mm diameter specimen is about 8 minutes;
◆ The two cylinders can work independently and have different mold size;
◆ User-friendly operation interface. Coloured HMI touch screen allows the users to set pressure, heating temperature, heatingtime and cooling time easily;
◆ Real-time temperature curve display;
◆ 10 memory modes which can set and save the parameters;
◆ For one cylinder, two specimens can be produced simultaneously with the use of a spacer;
◆ Three cooling modes: time, temperature, manual. It also has water-saving function;
◆ The cover is made of high temperature resistant composites by integral molding;
◆ Mobile plastic recirculation coolant tank is optional.
Specification
Description | AMP 5D | AMP 6D | AMP 7D | AMP 8D |
Operation | Automatic | |||
Pressure | Air | Air | Hydraulic | Hydraulic |
Cooling | Automatic/manual | |||
Mold | ○25 ●30 ○40 ○50mm, others can be customized | |||
Max Force（kgs） | 300 | 500 | 1200 | 4000 |
Max Tem（℃） | 180 | 180 | 200 | 200 |
Heater | 1.2KW | 2.4KW | 2.4KW | 3KW |
Dimension(WxDxH) | 600x560x430 | 600x560x430 | 540x560x430 | 540x560x430 |
Weight | 45Kg | 45Kg | 65Kg | 77Kg |
Power | 220V50Hz | |||
Air source | Need | Need | ||
Cooling Water | Need | |||
Mold Release | ○ | ○ | ○ | ○ |
Black Resin | ● | ● | ● | ● |
Green Resin | ○ | ○ | ○ | ○ |
Red Resin | ○ | ○ | ○ | ○ |
Conductive Resin | ○ | ○ | ○ | ○ |
Edge-protection Resin | ○ | ○ | ○ | ○ |
Transparent Resin | ○ | ○ | ○ | ○ |
Air filter | ● | ● | ● | ● |
Funnel&Spoon | ● | ● | ● | ● |
Drains | ● | ● | ● | ● |
●Standard○Option
