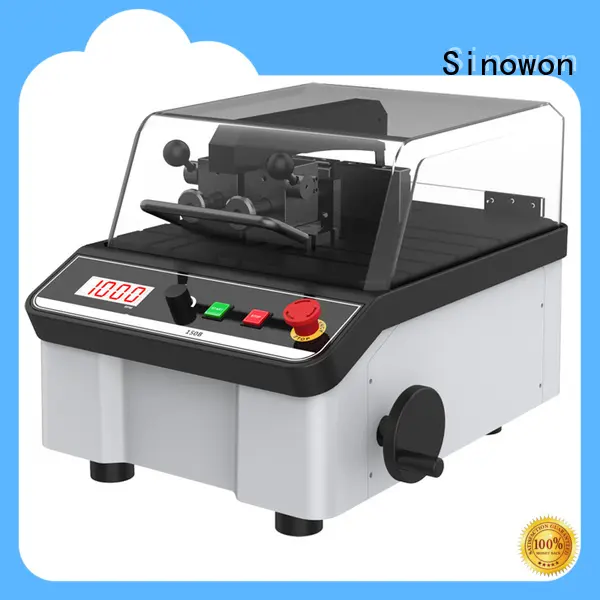

Sinowon elegant metallographic equipment design for LCD

Company Advantages
1. Sinowon grinding and polishing equipment has been sent to an accredited laboratory for assessment. It has been evaluated in terms of composition testing, safety & environmental testing, and physical properties testing. The product is analyzed and tested cautiously before packing
2. A sincere attitude to producing metallographic equipment is kept in each Sinowon staff's mind. Its quality and accuracy are improved every year
3. The product has less microbial contaminants. Produced in the dust-free workshop, the microbial contaminations can not easily get into this product. It, up to the requirements from different industries, is widely applied

◆ Powerful DC motors with high torque

◆ Variable speed. Max speed can be customized

◆ Blade feed: manual

◆ Magnetic safety switch. The blade can stop immediately once the cover is open

◆ Hard anodized aluminum table with T-slots. Easy to change the vises

◆ Aluminum fast cam locking vises (left and right)

◆ Composites support cover by integral molding, anti-rust

◆ Transparent top cover, easy to observe samples

◆ Built-in wheel cooling

Description	PC-150B
Blade Feed	Manual
Blade(mm)	150*12.7*0.6
Blade speed (rpm)	100-800
Table Dimensions (WxD,mm)	294*324
DC Motor	120W
Power	100 - 240VAC, 50-60Hz,   1 Phase
Accessories
Diamond Blade	●
Alumina Blade	○
SiC blade	○
Fast Cam Locking Vises	●
Vertical Clamping vise	○
X-Feed Fixture	○
Cutting Vise in longitude direction for screws, bars, etc	○
Cutting Fluid	○

●Standard○Option

Company Features
1. We own a considerable market share in overseas markets. They are mainly South Africa, America, England, and Germany. We have invested more staff in exploring more target markets all round the world.
2. Our mission is to improve the overall customer services level. We will cultivate the customer service team in a more professional way to improve their communication skills.
