Sinowon elegant metallurgical equipment with good price for aerospace

Company Advantages
1. Sinowon bench grinder buffing wheel attachment is manufactured in a dust-free casting and molding workshop with high-technology advanced 3D modeling equipment, to improve its productivity and mold precision. A quality control system is implemented for the product
2. Sinowon Innovation Metrology Manufacture Limited. has high ability of new product development and brand creation. Innovation is always made to update the product
3. The product has the advantage of aging resistance. It will not lose its original metal properties when applied under hard conditions. The product is well known for high accuracy and great stability
4. The product has a long cycle life. The active materials feature strong stability and it is optimized in terms of the prevention of leaks. The product is excellent in dust prevention

◆ Easy to use. One button start, automatic pressure loading, heating and cooling;

◆ High efficiency. New design of heating and cooling units significantly reduce the cycle time. Usually, the cycle time for 30mm diameter specimen is about 8 minutes;

◆ The two cylinders can work independently and have different mold size;

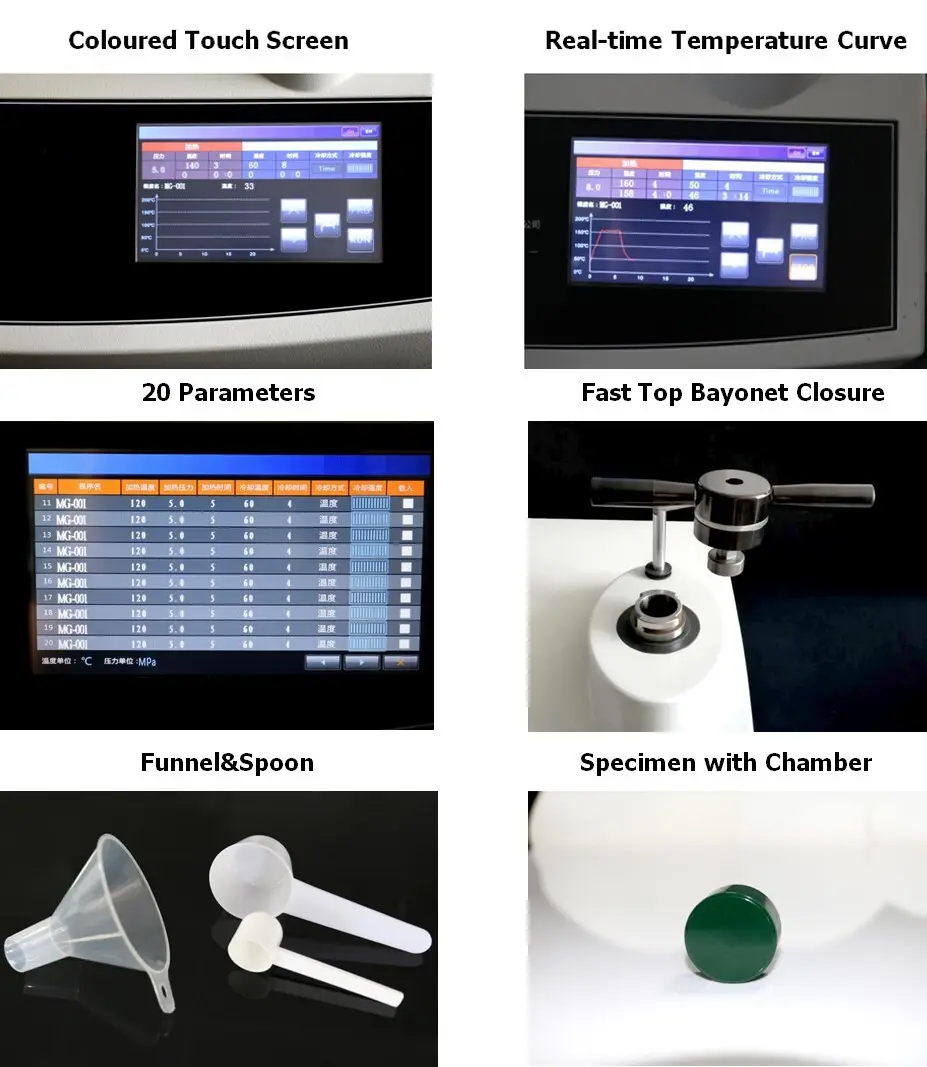

◆ User-friendly operation interface. Coloured HMI touch screen allows the users to set pressure, heating temperature, heatingtime and cooling time easily;

◆ Real-time temperature curve display;

◆ 10 memory modes which can set and save the parameters;

◆ For one cylinder, two specimens can be produced simultaneously with the use of a spacer;

◆ Three cooling modes: time, temperature, manual. It also has water-saving function;

◆ The cover is made of high temperature resistant composites by integral molding;

◆ Mobile plastic recirculation coolant tank is optional.

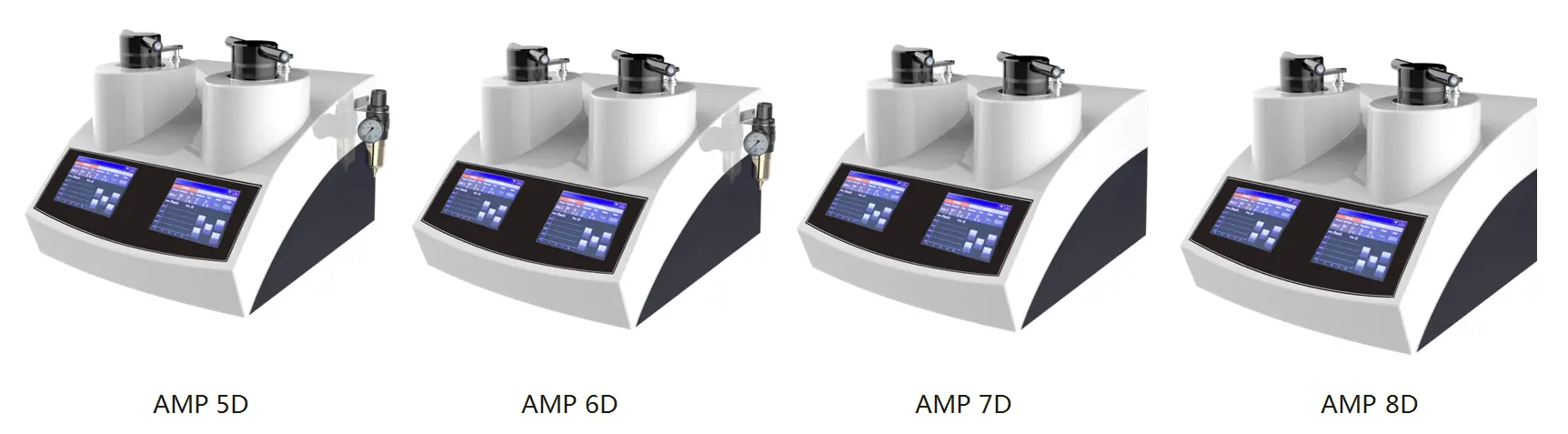

Description	AMP 5D	AMP 6D	AMP 7D	AMP 8D
Operation	Automatic
Pressure	Air	Air	Hydraulic	Hydraulic
Cooling	Automatic/manual
Mold	○25 ●30 ○40 ○50mm, others can be customized
Max Force（kgs）	300	500	1200	4000
Max Tem（℃）	180	180	200	200
Heater	1.2KW	2.4KW	2.4KW	3KW
Dimension(WxDxH)	600x560x430	600x560x430	540x560x430	540x560x430
Weight	45Kg	45Kg	65Kg	77Kg
Power	220V50Hz
Air source	Need	Need
Cooling Water	Need
Mold Release	○	○	○	○
Black Resin	●	●	●	●
Green Resin	○	○	○	○
Red Resin	○	○	○	○
Conductive Resin	○	○	○	○
Edge-protection Resin	○	○	○	○
Transparent Resin	○	○	○	○
Air filter	●	●	●	●
Funnel&Spoon	●	●	●	●
Drains	●	●	●	●

●Standard○Option

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. possesses a powerful technical staff and advanced production equipment.
2. Sinowon Innovation Metrology Manufacture Limited. will ensure increased customer satisfaction during the shopping process. Check now!
