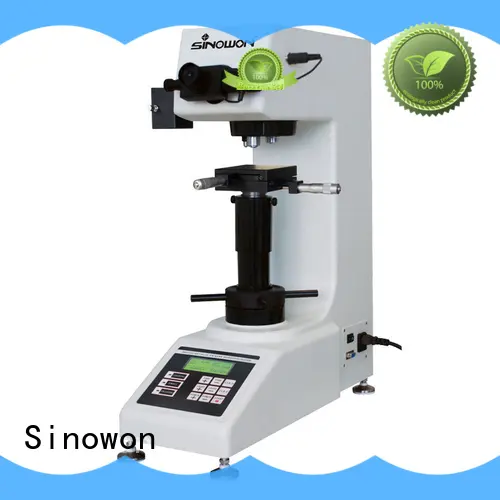

Sinowon elegant vickers hardness indenter for small parts

Company Advantages
1. Video measurement system is designed as vickers hardness indenter and provides vickers hardness testing machine solution.
2. Its quality is effectively ensured by the strict controlling quality check process.
3. Available in different sizes, the product is extensively used in the field.
4. This product provided by Sinowon has received much fame for its outstanding features.

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Just aim the dialog line, then it will automatically reading the length and display hardness value

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

Product Name		Digital Vickers hardness tester
Model		SV-5	SV-10	SV-30	SV-50
Code#		821-101S	821-111S	821-121S	821-131S
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is dedicated to the research, development, production, and sales of high-tech Video measurement system projects.
2. It turns out to be true that the investment in the technology will promote our Vision Measuring Machine 's competitiveness in the industry.
3. Sinowon Innovation Metrology Manufacture Limited. is committed to providing elegant and timeless lifestyle Video measurement system products. Inquire now! We hold the belief that through persistent efforts, Sinowon will thrive in Video measurement system industry. Inquire now!
