Sinowon excellent 3d computer vision companies factory for precision industry
1. The production stages of Sinowon vision computer software are finely conducted. The stages include the preparation of yarn, ginning, opening, cleaning, mixing, scutching, and carding. It is easy to operate, with fast speed
2. This product is soft, durable and refined. When sleepers sink into this product, they can feel the ultimate breathability and softness. It is aimed at more than 60 countries and regions for exports
3. We implements strict checks to ensure the impeccable quality of this product. The product performs well in program control and material use reduction
4. The product has never failed customers in terms of quality, performance, practicality, etc. Imported materials and accessories are used in product manufacturing
5. The quality and performance of the product are first-class in the industry. It is up to both domestic and international standards

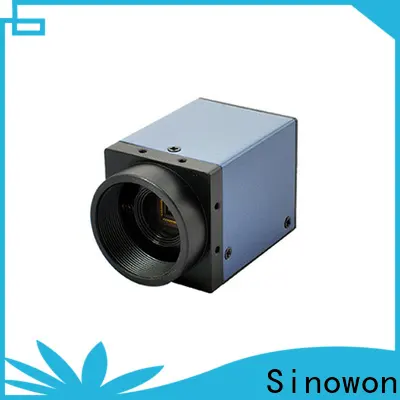

1/3” Analog Color Video Camera
Vicam6.0
Vicam6.0 is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.
Technical Specifications：
Commodity | 1/3” Analog Camera of Vision Measuring Machine |
Model | ViCam6.0 |
Video Signal System | Type E: PAL |
Sensor | Diagonal 6.0mm 1/3” Exview CCD |
Unit cell size | 6.5um(H)X6.25um(V) |
Number of pixels | approx. 470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 650TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms |
Video process | Bio-ele image processing ele ext-Fx TM |
Sensitivity | 0.1Lux |
S/N ratio | 54dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(1800 °K~10500 °K) |
AES | OSD set: 8-level manual/auto: 1/50s~1/10,0000s |
OSD | available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Power consumption | Approx. 1.5W; recommended: +12VDC |
Operating temperature | 0℃ to +40℃ (recommended) |
Dimension | 60.0 (L)×48.5 (W)×58.0 (H) mm |
Weight | approx. 155g |
1/2” Analog Color Video Camera
Vicam8.0
Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.
Technical Specification:
Commodity | 1/2” Analogue Color Video Camera |
Model | Vicam8.0 |
Signal system | Type E: PAL standard |
Sensor | 1/2” 8.6um(H)X8.3um(V) |
Number of pixels | Approx.470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 700TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75 ohms: C:0.3Vp-p 75 ohms |
Video process | ele ext-Fx |
Sensitivity | 0.001Lux |
S/N ratio | 63dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(2300° K~11000° K) |
Image adjustment | OSD set, Brightness, contrast ratio, and sharpness, Chroma, gain |
Language | OSD set,8 English/Chinese/France/German/Portuguese/Spanish |
OSD | Available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Lightening proof | isolated 10/700us 4000V; follow IEC61000-4.5, ITU-T K20/21 |
Power consumption | approx. 2.4W +12V DC |
Operating temperature | 0℃ to ~40℃ |
Dimension | 127.1 (L)×68.8 (W)×48.7 (H) mm |
Weight | approx. 400g |
Company Features
1. Our customers give compliments on the quality and performance of 3d computer vision companies .
2. Sinowon aims to create a best atmosphere to achieve the best value for each person. Call now!
