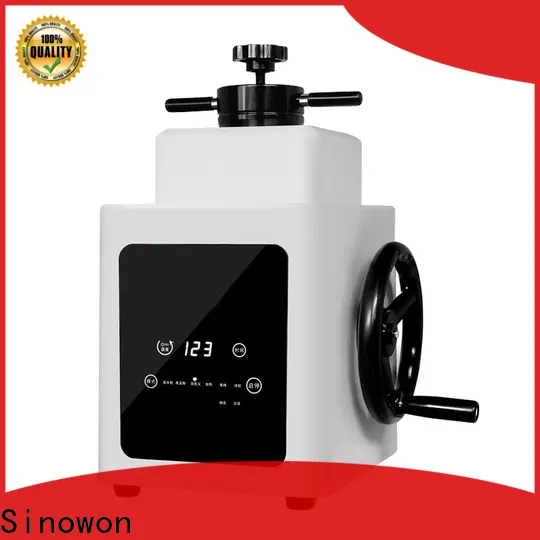

This machine is designed for purpose of the last process before polishing. It is setting up those small, difficult-to-hold or irregular specimens for metallographical test. It can facilitate polishing and watch properly the ideal material structure and measure the hardness of the material by hardness tester. The inserts for this machine are limited to thermosetting materials only .The punching temperature of different thermosetting materials can be adjusted depending upon the features of materials .
The inserts are available from the sales agency of our company.
Machine Power
Model | MP2-22 | MP2-30 | MP2-45 | |
Code# | 713-101 | 713-111 | 713-121 | |
Sample diameter | Φ22mm | φ30mm | Φ45mm | |
Heating Range | Max190℃ | |||
Holding time Range | 0-30min | |||
Machine Power | ≦800w | |||
Input Voltage | Single-phase 220V 50HZ | |||
Dimension | 260mm×360mm×450mm | |||
Net Weight | 35kg |
