Sinowon excellent tensile strength tester price with good price for small areas

Company Advantages
1. Sinowon tensile strength testing equipment undergoes a complete pre-production process. The process includes pattern design (seam and trimming allowance), sample making, and pattern grading & marking. The Gost certificate has been obtained for the Russian market
2. This product is very popular in the market and is widely used in the market. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. It is smooth and soft. During the production, the raising process, which allows the fabric surface to treat with sharp teeth to lift the surface fibers thereby imparting hairiness and softness, is conducted. The product is verified by ISO9001:2015 to be quality ensured
4. It is highly safe to use. The product features built-in protection functions that can prevent any accidental issues, such as electric leakage. The product is designed by professional designers to be user-friendly

◆ The material testing is driven by AC servo motor stably;

◆ The linear motion is ensured by double precision ball screw rod smoothly;

◆ The columns are protected by aluminum shell with sandblasted surface perfectly;

◆ The base cover is made of high-grade ABS plastic with spray coating, which is durable and beautiful;

◆ The fine adjustment switch is standard delivery for up and down stroke;

◆ The different functional grips can be replaced by the quick-release-clamp easily.

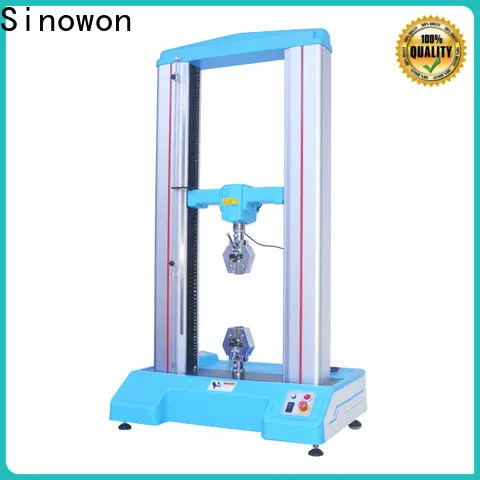

Product Name	Universal Material Testing Machine
Model	Vexus MT20-700	Vexus MT20-1000	Vexus MT20-1500
Test Stroke	700mm	1000mm	1500mm
Capacity	10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN(can select double capacities preparation)
Display	Computer display mode
Force Resolution	1/500,000
Force Accuracy	≤±0.3%
Stroke Resolution	0.005mm
Control Mode	All computerized operation mode
Test Width	Ø420mm
Test Speed	0.1~1000mm/min, can set by computer, with up & down fast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension	72×52×130cm(W×D×H)
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power	400W
Machine Weight	Approx 115kg
Power Supply	220V 50/60HZ 10A
Standard Device	1 set of grips, computer software, USB computer connection wire
Optional	Computer and Grips

◆ MS100 Test & Control System is designed to work PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers, which can make the testing of tensile, compression, bending, shearing, tearing and peeling test, etc.

◆ MS100 has the functions of data collection, save, processing and printing test result, it can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, flexible data processing, MS-ACCESS database support, and so on.

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has high quality tensile strength tester price and modern production lines.
2. We have established strong and stable business relationships both at home and abroad. We have established a customer base in the United States, Australia, and some European countries.
3. Relying on the strong power, Sinowon now can stand on the material testing software market. Ask online!
