Sinowon grinding angle grinder polishing wheel factory for LCD

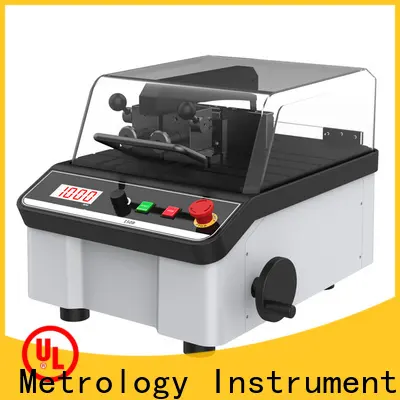

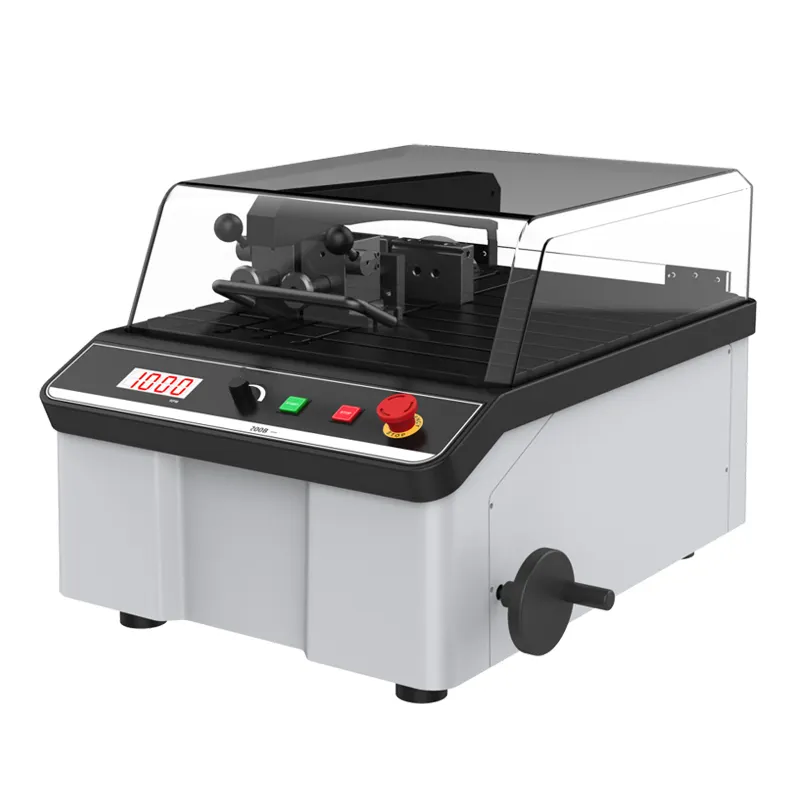

The PC-150B is a tabletop manual precision sectioning saw. This is a versatile cutting machine designed for sectioning circuit boards and a variety of other sample cutting applications, such as metals, fasteners, rocks and ceramics, polymers, composites, electronics, semiconductors, biomaterials, etc.
Product Feature
◆ Powerful DC motors with high torque
◆ Variable speed. Max speed can be customized
◆ Blade feed: manual
◆ Magnetic safety switch. The blade can stop immediately once the cover is open
◆ Hard anodized aluminum table with T-slots. Easy to change the vises
◆ Aluminum fast cam locking vises (left and right)
◆ Composites support cover by integral molding, anti-rust
◆ Transparent top cover, easy to observe samples
◆ Built-in wheel cooling
Specification
Description | PC-150B |
Blade Feed | Manual |
Blade(mm) | 150*12.7*0.6 |
Blade speed (rpm) | 100-800 |
Table Dimensions (WxD,mm) | 294*324 |
DC Motor | 120W |
Power | 100 - 240VAC, 50-60Hz, 1 Phase |
Accessories | |
Diamond Blade | ● |
Alumina Blade | ○ |
SiC blade | ○ |
Fast Cam Locking Vises | ● |
Vertical Clamping vise | ○ |
X-Feed Fixture | ○ |
Cutting Vise in longitude direction for screws, bars, etc | ○ |
Cutting Fluid | ○ |
●Standard○Option
Details
