Sinowon grinding bench grinder polishing wheel series for LCD

Model:

MC-250

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Sinowon grinding bench grinder polishing wheel series for LCD 9

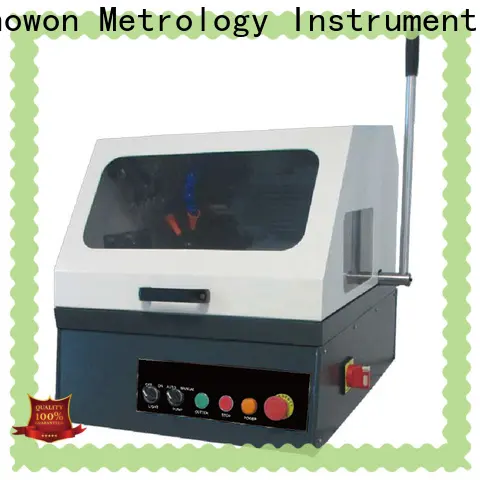

The MC-250 is a tabletop manual wheel feed abrasive cutter with robust and durable design. This is a versatile cutting machine designed for sectioning an extremely wide range of materials, such as ferrous metals, non-ferrous metals, fasteners, foundry castings, heat treated parts, rocks and ceramics, etc. It has large workspace and various clamping vises options. Ideal for material test laboratory, as well as for small industrial or production applications.

Product Feature

◆ Aluminum casting, powder coated

◆ Variable speed motor (option)

◆ T-slot Table made of stainless and aluminum alloy

◆ Fast Cam Locking Vises, made of 304 stainless steel

◆ Chamber illumination with LED

◆ Electronic braking system for faster stopping the blade(option)

◆ Side port window for longer samples

◆ Mobile plastic recirculation coolant tank

◆ Large workspace

Specification

Product Name	Manual Cutting Machine
Model	MC-250
Manual/Motor	Manual/Motor
Cooling Method	Water-cooling
Cutting Disk	250x32x1.5mm
Revolving Speed, rpm	2850rpm
Max cutting ability, mm	80mm
Travel	200mm
Working stage size	316x260mm
Main Machine	810x750x620mm
Power	2.2KW
Power Supply	Three phase380V, single phase220V

Option Accessories

Sinowon grinding bench grinder polishing wheel series for LCD 10

LED Lamp

Sinowon grinding bench grinder polishing wheel series for LCD 11

Large Workong Space

Sinowon grinding bench grinder polishing wheel series for LCD 12

Schneider Switch（Optional）

Sinowon grinding bench grinder polishing wheel series for LCD 13

Vertical Clamp

Sinowon grinding bench grinder polishing wheel series for LCD 14

304 SS Toggle Clamp

Sinowon grinding bench grinder polishing wheel series for LCD 15

ABB Motor（Optional）

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
