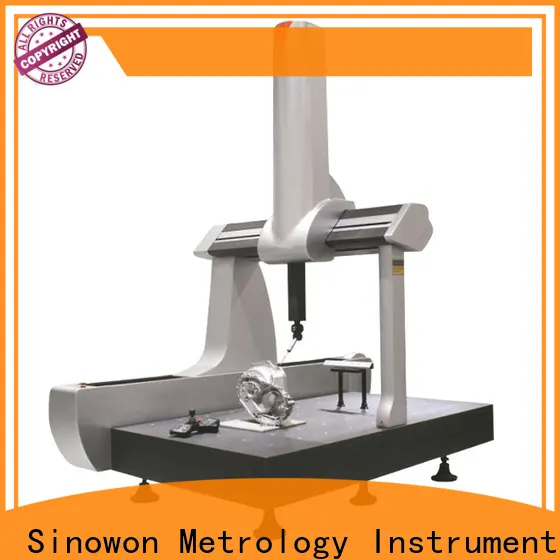

Micromea10128 serials CMM combines single-point probing and analog scanning in a single high performance measuring machine also can equipped with contact and non-contact probe system. Based on the new generation of controller combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop scanning.
Product Characteristics
◆ Granite fixed worktable, XZ axes are made of high performance aluminium alloy, Good temperature adaptability and faster movement speed.
◆ Granite worktable with integral “dovetail” guide in Y axis, eliminate the pitch and yaw ,also provides superior motion stability.
◆ Z axis air-balance with self-protection ,improve motion capability.
◆ Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stability, lower noise.
◆ High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped.
◆ Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes.
◆ RENISHAW tonic steel scale，Free expansion with the temperature change.
◆ Famous parts from all over the world are used in every important sub systems.
Performance Specifications
Measuring Strokes(mm) | Overall Dimension(mm) | Machine Weight(Kg) | Max. Part Weight (Kg) | |||||
X | Y | Z | Lx | Ly | Lz | |||
1000 | 1200 | 800 | 1690 | 2370 | 3150 | 2490 | 1800 | |
Accuracy is according to ISO 10360 – 2 | ||||||||
Maximum permissible error of indication of a CMM for size measurement (μm) | Maximum permissible Probing Error (mm) | |||||||
1.5 + 3L/1000 | 1.9 | |||||||
Scale Resolution(μm): 0.1 | ||||||||
Dynamic Performance | ||||||||
3D positioning speed(mm/s) | 3D acceleration(mm/s2) | |||||||
530 | 1200 | |||||||
Environment Specifications
Room Required Specifications | |
Room Temperature | 18～22°C |
Temperature Gradient (in time) | 1°C /h |
Temperature Gradient (in time) | 2°C /24h |
Temperature Gradient (in the volume) | 1°C /m |
Humidity Required Specifications | |
Relative humidity | 45-75％ |
Air Supply System Required Specifications | |
Min. air pressure | 5bar [0.5 MPa] |
Air consumption | 0.12-0.45m3/min |
Electrical requirements | |
Voltage | 220 V ± 10% |
Frequency | 50/60 Hz |
Max Power consumption | 1500VA |
Current | 15 A |
Allowed Maximum Floor Vibration | |
Frequency Range | 0 ~ 19 Hz 19~75 Hz > 75 Hz |
Maximum Amplitude | 0.0011 mm 0.0011~0.002 mm 0.002 mm |
A good earth ground (less than 4 W) is required for reliable operation of the electrical controls. | |
