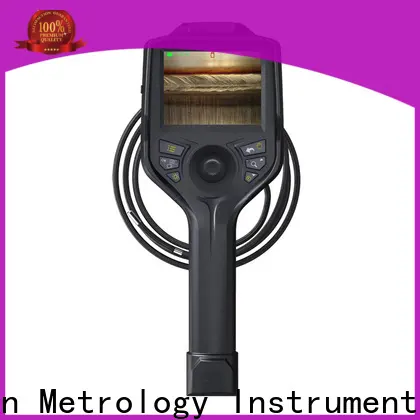

Sinowon hot selling extech hdv640w price customized for industry
Product Feature
◆ 1080P High Definition Image
◆ Interchangeable Tube system
◆ Optional Tube Diameter
◆ 360° Accurate Articulation with Joystick
◆ 8H Continuous Working Time
INTELLIGENT MONITOR SYSTEM
High Definition
l Photo/Video 720P; 1,000,000 pixels;
l HD video recording available.
Output
The image can be outputted to HD display by HDMI.
Real-Time Zooming
In preview mode, it supports real-time zooming, and the defect inspection is more intuitive.
Scale
Defect size measurement and comparison, coordinate display, available for review, more accurate auxiliary judgement for defect detection auxiliary judgement
MULTIFUNCTIONAL TUBE SYSTEM
Articulation
360 ° all-way articulation, damping type positioning design and precise probe locking technology makes the detection more accurate and efficient.
Working Time
Original dual battery design, 8 hours working time, real-time battery indication.
Wear Resistant Tube
5 layers of tungsten- braided tube; Wear resistance: 20 times better than ordinary probe.
Bending Angel:
The maximum bending angle is up to 190°.
Illuminance:
With super bright ceramic LED, the illuminance can reach to 1,000,000 Lx.
Interchangeable Tube:
Compatible with 3.9mm and 6mm diameter tubes.
Specification
Series | VA350 Videoscope | ||
Probe System | Probe Diameter(mm) | Φ3.9mm Φ6.0 Φ3.8 | Φ6.0mm |
Camera Pixels | 1MPiexel(1280x720) 100万 | ||
DOF | 5-80mm//10-100mm/50mm-∞ | ||
FOV | 120°
| ||
Light Source | LED (optional: optic fiber) | ||
Illuminance | It can be up to 20,000 Lx | It can be up to 100,000 Lx | |
Tube Length | 1.0Meter (Customized: 2/3/4/5 Meter) | 1.5Meter (Customized: 2/3/4/5/6/7/8Meter) | |
Protecting Device of Durability | 42mm buffer protection device between tube and handle | ||
Articulation | 360° joystick control | ||
Bending Angle | Maximun:190°（8m tube:100°） | ||
Probe Positioning | Damping positioning (optional: articulation lock device) | ||
Display Monitor System | Display | 3.5 inches TFT LCD | |
Image Resolution | 1280×720 | ||
Language | English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean /Polish / Latvian | ||
Outer Case Material | Anti-fall engineering alloy material | ||
IP Level | Probe/tube: IP67 | ||
Temperature Indication | High temperature alarm(optional） | ||
Structure | Hand-held integrated design | ||
Image/Video Format | JPEG/MOV | ||
Data Port | HDMI video output, Micro USB port | ||
Working Time | ≥8h | ||
Zoom In/Out | 4X | ||
Battery Capacity | 3.7V，3200mAh×2 | ||
Power Charge | DC5V，maximum current: 1A | ||
Weight | 0.55Kg-0.8Kg | ||
Compatibility | Interchangeable monitor and tube with different diameters | ||
Accessories | Storage | Standard TF card: 16G, Maximum: 32G | |
Power Supply | Detachable lithium batteries | ||
Standard Configuration | Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual | ||
