Sinowon hot selling measuring machine directly sale for small areas

Company Advantages
1. The production of measuring machine always takes multisensor measuring machine manufacturer into account. Innovation is always made to update the product
2. The product gives people's feet external support and helps to redistribute the foot pressure, enabling people to be in the correct position of the biological force line. The product is verified by ISO9001:2015 to be quality ensured
3. The product is renowned for its sophisticated workmanship. All edges are finely rounded and the surface is handled to achieve desired smoothness. Its quality and accuracy are improved every year
4. This product features impact absorption. Its fabric materials have the ability to provide cushioning and protection by absorbing the energy of a sudden impulse or shock. The product performs well in program control and material use reduction

◆ Four-axis CNC fully auto loop control, auto measurement;

◆ Marble base and pillar, stable and reliable;

◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;

◆ Imported P-grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;

◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;

◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

◆ With proprietary fully auto measuring software Rational vue, powerful function, simple operation;

◆ Optional touch probe and laser probe, it can also be customized according to customer request.

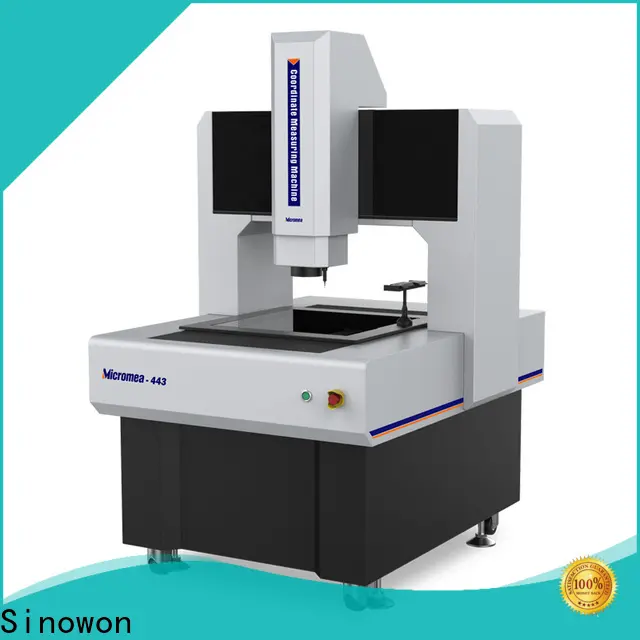

Product Name		Multisensor Measuring Machine
Model		Micromea443
Code#		528-130
X/Y-axis Travel		400x400mm
Z-axis Travel		300mm
X/Y/Z 3-axis  Linear Scale		Resolution：0.0001mm
Guidance Mode		High-precision   Double-Track Linear Guide
Operation   Mode		Joystick   controller, Mouse operation, automatic detection program
Probe System		TP20 and MCR20   Probe change system
Measurement   Accuracy*		XY-axis：≤2+L/200(um)
		Z-axis：≤3+L/200(um)
Repeatability		±1.8um
Video System**		1/2" Color CCD Camera
		6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X,      Video Magnification:   20X~129X(21.5”monitor)
Field of View (mm) （Diagonal   * Horizontal*Vertical）	Lens   Magnification	0.7x	1x	2.0x	3.0x	4x	4.5x
	1/2"CCD	11.43x9.14x6.86	8.00x6.40x4.80	4.00x3.20x2.40	2.67x2.13x1.60	2.00x1.60x1.20	1.78x1.42x1.07
Illumination	Contour	LED Parallel Contour Illumination
	Surface	5-ring 8-division 0~255 grade continue adjustable
Software   System		RationalVue MS
Load Capacity		30Kg
Working   Environment		Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%,Vibration<0.002g,<15Hz
Power		220V/50Hz/10A
Dimension		1600x1050x1650mm
Packing   Dimension		1800x1400x2000mm
Weight		1380Kg

Company Features
1. Our measuring machine is the excellent offspring of our advanced technology.
2. The company's stated promise is ' To give the best service, make the best quality products'. We are working on cultivating a professional team of staff who can provide world-class customer service. Get info!
