Sinowon hot selling micro hardness tester price for measuring

Company Advantages
1. The manufacture of Sinowon vickers microhardness involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis. It is aimed at more than 60 countries and regions for exports
2. Sinowon Innovation Metrology Manufacture Limited. wants to better understand customer opinions on Sinowon products and services. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. The product has less microbial contaminants. Produced in the dust-free workshop, the microbial contaminations can not easily get into this product. A quality control system is implemented for the product
4. The product features great mobility. It is mounted on a rugged steel frame that is designed and manufactured specifically to project's needs. The Gost certificate has been obtained for the Russian market

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, max loading force at 1Kgf(Vicky MHV-1000).

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error. MV series vickers software is recommended, includes USB camera, C-mount adapter and computer.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

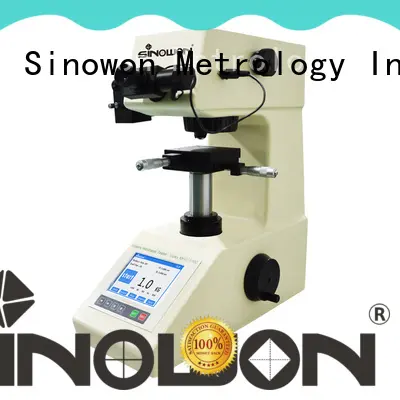

Product Name		Color Touch Screen Digital Micro Vickers Hardness Tester
Model		Vicky MHV-1000
Code#		823-160
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Lens & Indenter Switch		Auto Turret
Data Transfer		Bluetooth；RS232 is optional
Hardness Resolution		1HV
Measuring Range		1HV~2967HV
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Hardness Conversion		HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB
Eyepiece		10x Digital Eyepiece
Dwell Time		Adjustable 5~60s
X-Y Anvil		Size：100*100mm；Travel：25*25：Resolution：2um
Illumination		LED Cold Light（Brightness adjustable）
Display		5.2" Touch Screen, Resolution 640*480
Conversion Standard		ASTM、DIN
Language		Chinese, English, German, Portuguese, Turkish,  Czech, Korean
Max Height of Specimen		70mm
Instrument Throat		95mm
Power Supply		AC220V/50Hz
Dimension/Packing Dimension		478 x 162 x 518mm/500 x 490 x 700mm
Gross/Net Weight		45Kg/35Kg
Conform standards		GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a well-known supplier of vickers microhardness with large factory and modern production lines. In addition, Sinowon Innovation Metrology Manufacture Limited. also has a first-class product R&D team with years of vicker hardness tester product R&D experience.
2. The product R&D team has injected a powerful impetus for the development of micro vickers hardness tester in Sinowon Innovation Metrology Manufacture Limited..
3. Each part of micro vicker hardness tester will be checked by our professional QC department. The company demonstrates its business ethics in several ways. This ethics standard encourages it to do the right thing for society. For example, we lower the carbon footprint during production, take part in fair business trade, treat employees fairly and ethnically, etc. Inquire now!
