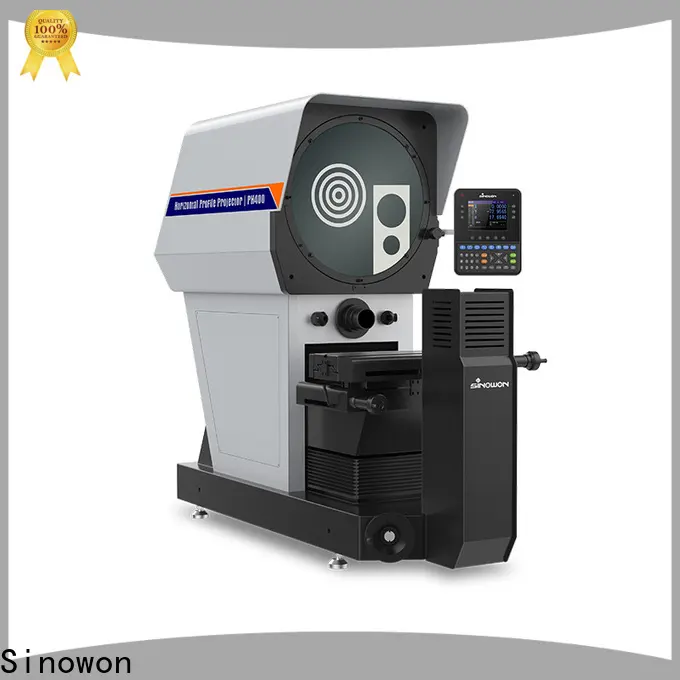

Sinowon hot selling profile projector least count manufacturer for precision industry
Product Feature
◆ The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
◆ Coating process reflector, clearer image and great dustproof;
◆ Adjustable contour and surface illumination, to meet with difference workpiece demand;
◆ Imported high light and long using life LED illumination ,to ensure precision measurement demand;
◆ High resolution optical system with clear image and magnification error is less than 0.08%;
◆ Powerful Bi-axial fan cooling system，highly increase using life;
◆ Powerful and colorful DRO DP400，realized fast and accurate 2D Measurement;
◆ Built-in Mini-printer, can print and save data;
◆ With standard 10X objective, optional 5X,20X，50X objective，rotary table, foot switch ,clamp, etc.
Specification
| Product Name | Ø400mm Digital Horizontal Profile Projector |
| Mode | PH400-3015 |
| Code # | 512-400 |
| Working Stage Size | 455x126mm |
| Working Stage Travel | 300x150mm |
| Focusing | 120mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Loading Weight | 15Kg |
| Screen | Dia:412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1’or 0.01°，accuracy 6’ | |
| Digital Readout | DP400 (510-340)Multifunction colorful LCD digital readout |
| Illumination | Contour Illumination：3.2V/10W LED; Surface Illumination：220V/130W halogen lamp |
| Working Environmental | Temp：20℃±5℃，Humidity：40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,200W |
| Dimension (L×W×H) | 1455 x633 x1199 mm |
| Package Dimension(L×W×H) | 1630x780x1500mm |
| Gross/Net Weight | 350/300kg |
Optional Objectives
| Magnification | 5X | 10X | 20X | 50X |
| Field of View | φ80mm | φ40mm | φ20mm | φ8mm |
| Working Distance | 65mm | 80mm | 67.7mm | 51.4mm |
