Sinowon linear scales u vision software factories with good price for precision industry

Company Advantages
1. The production processes for Sinowon u vision software factories are primarily based on renewable resources. It is aimed at more than 60 countries and regions for exports
2. This product is favored by the majority of the people and shows the broad market application prospects of this product. The product performs well in program control and material use reduction
3. The product has obtained many international certificates which are the strong testimony of its high quality and performance. Imported materials and accessories are used in product manufacturing
4. The strict quality control system is applied to ensure the quality of the product. Its packing is made seriously to guarantee the safety during shipment
5. The product is treasured for their consistent performance and optimum functionality. The Gost certificate has been obtained for the Russian market

◆ Precision optical design, high resolution, low distortion, excellent optical performance.

◆ Super long working distance, big FOV range.

◆ Multiply coating technology, reduce the stray light and ghost, offering high quality image.

◆ Anodized metal part, improved endurance.

◆ Compact and reliable structure.

Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.

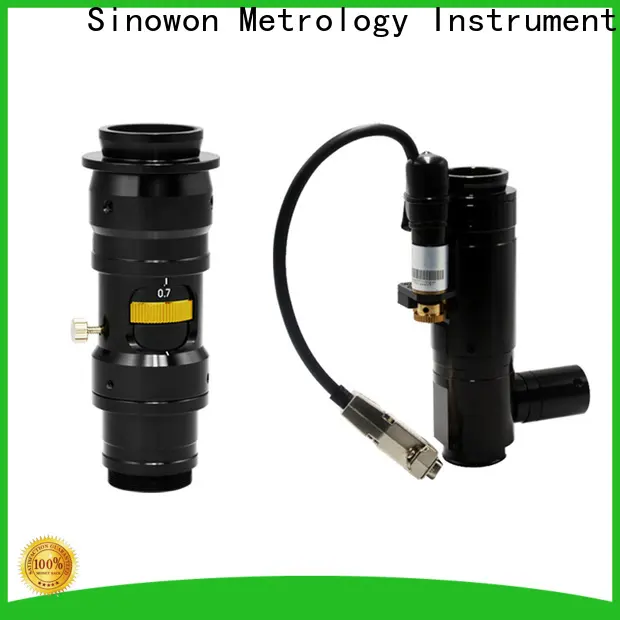

Model

Zoom745

Zoom745C

Zoom745D

Zoom745DC

Zoom745M

Zoom745HC

Type

Zoom Lens

Coaxial Illumination Zoom Lens

Detented Zoom Lens

Detented With Coaxial Illumination

Motorized Zoom

Motorized Zoom Lens With Coaxial Illumination

Zoom Control

Manual Zoom

Manual Zoom

Manual Zoom

Manual Zoom

Motorized Zoom

Motorized Zoom

Optical Magnification

0.7X~4.5X

Working Distance

90±2mm

80±2mm

Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

DOF（mm）

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.No.

11.6

2.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution （um）

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%

FOV（mm） DxHxV

2/3"

15.71x12.57x9.43

11.00x8.80x6.60

7.33x5.87x4.40

5.50x4.40x3.30

4.40x3.52x2.64

3.67x2.93x2.20

3.14x2.51x1.89

2.75x2.20x1.65

2.44x1.96x1.47

1/2"

11.43x9.14x6.86

8.00x6.40x4.80

5.33x4.27x3.20

4.00x3.20x2.40

3.20x2.56x1.92

2.67x2.13x1.60

2.29x1.83x1.37

2.00x1.60x1.20

1.78x1.42x1.07

1/3"

8.57x8.86x5.14

6.00x4.80x3.60

4.00x3.20x2.40

3.00x2.40x1.80

2.40x1.92x1.44

2.00x1.60x1.20

1.71x1.37x1.03

1.50x1.20x0.90

1.33x1.07x0.80

Max.Sensor Size

2/3"

Mount

C-Mount

Coaxial Illumination

1. Infinity parallel incident light, with shadow-free and uniform illumination.

2. Coaxial illumination structure ensure even illumination.



Detented zoom lens

1. Mechnical positiong structure, high accuracy in zoom and repetitive positioning

2. 15-divided points for mechanical positioning

3. High hardness alloy material, for a long lifespan;Precision mechanical structure.

Motorized Zoom

1.High speed in zoom and focus and high accuracy in repetitive positioning; Imported DC servo motor, closed loop control.

2.Single or double motor control system via 9-PIN RS232.

3.Stable quality performance even in the strong vibration environment.

Fine-focus Device

1. Used in narrow space, adjust fine-focus part for focusing on different height surface of parts, no need to change WD;

2. Fine focus range: 3mm-12mm;

3. Manual and motorized structure.

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has become a major u vision software factories manufacturing base in China , supplying a majority of microsoft vision studio items to the world market.
2. All the technical standards of Sinowon in vision software factory are stricter than national and international standards.
3. Our goal is to provide customers with the highest quality products and excellent service at the best price/performance ratio. We aim at being a long-term strategic business solution with all our customers.
