Sinowon material testing equipment design for thin materials

Company Advantages
1. The quality process of Sinowon material testing equipment begins with a full contract review of each order. Each component is reviewed for mechanical performance prior to production.
2. The product combines versatility with reliable performance.
3. Our material testing equipment can be a great help in tension testing machine.
4. With the use of this product, the product can replace workers to finish harmful or dangerous work tasks, allowing them to enjoy a safe working environment.

◆ The material testing is driven by AC servo motor stably;

◆ The linear motion is ensured by double precision ball screw rod smoothly;

◆ The columns are protected by aluminum shell with sandblasted surface perfectly;

◆ The base cover is made of high-grade ABS plastic with spray coating, which is durable and beautiful;

◆ The fine adjustment switch is standard delivery for up and down stroke;

◆ The different functional grips can be replaced by the quick-release-clamp easily.

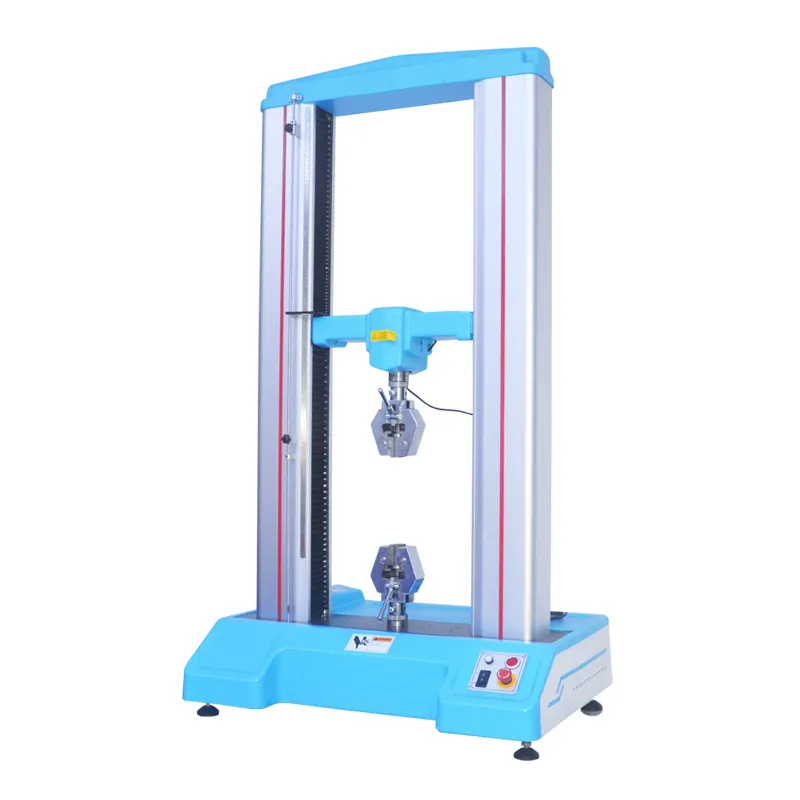

Product Name	Universal Material Testing Machine
Model	Vexus MT20-700	Vexus MT20-1000	Vexus MT20-1500
Test Stroke	700mm	1000mm	1500mm
Capacity	10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN(can select double capacities preparation)
Display	Computer display mode
Force Resolution	1/500,000
Force Accuracy	≤±0.3%
Stroke Resolution	0.005mm
Control Mode	All computerized operation mode
Test Width	Ø420mm
Test Speed	0.1~1000mm/min, can set by computer, with up & down fast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension	72×52×130cm(W×D×H)
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power	400W
Machine Weight	Approx 115kg
Power Supply	220V 50/60HZ 10A
Standard Device	1 set of grips, computer software, USB computer connection wire
Optional	Computer and Grips

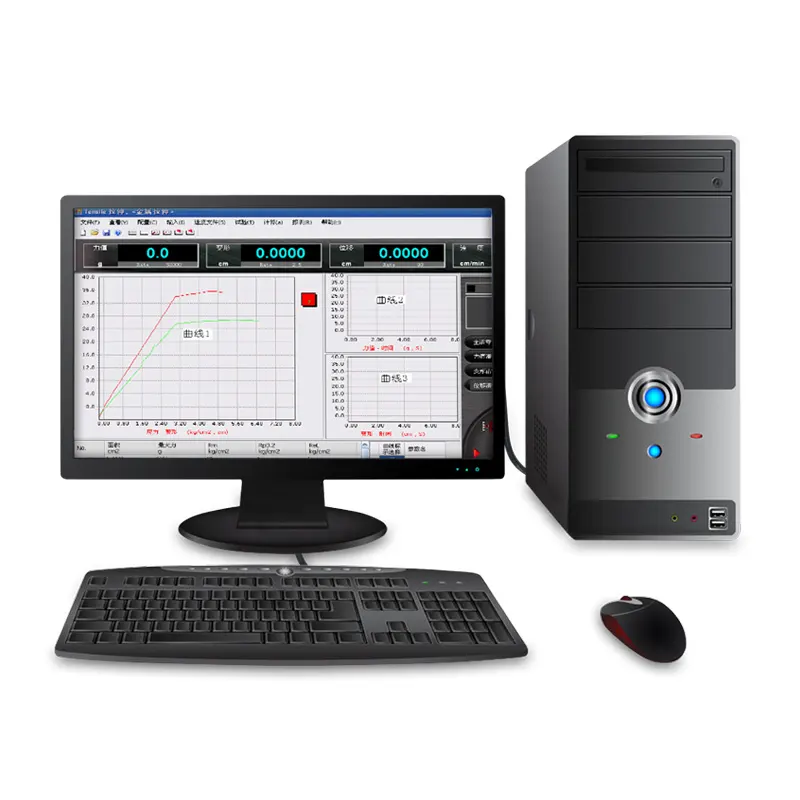

◆ MS100 Test & Control System is designed to work PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers, which can make the testing of tensile, compression, bending, shearing, tearing and peeling test, etc.

◆ MS100 has the functions of data collection, save, processing and printing test result, it can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, flexible data processing, MS-ACCESS database support, and so on.

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a well-positioned manufacturer of tension testing machine. Over the years, we have gained years of experience in the production of tensile testing machine price .
2. Our factory has imported a wide range of production facilities. These state-of-the-art facilities help maintain our quality, speed and minimize errors.
3. We take social responsibility in our business operations. We encourage employees to work together and leverage their core competencies to lead and engage in different initiatives to address key social and environmental issues. We implement sustainable development policy during our business activities. We adopt appropriate technologies to manufacture, preventing and reducing environmental pollution. Our company values consist of five cornerstone principles: passion, responsibility, innovation, determination, and excellence. These values guide us to conduct business successfully.
