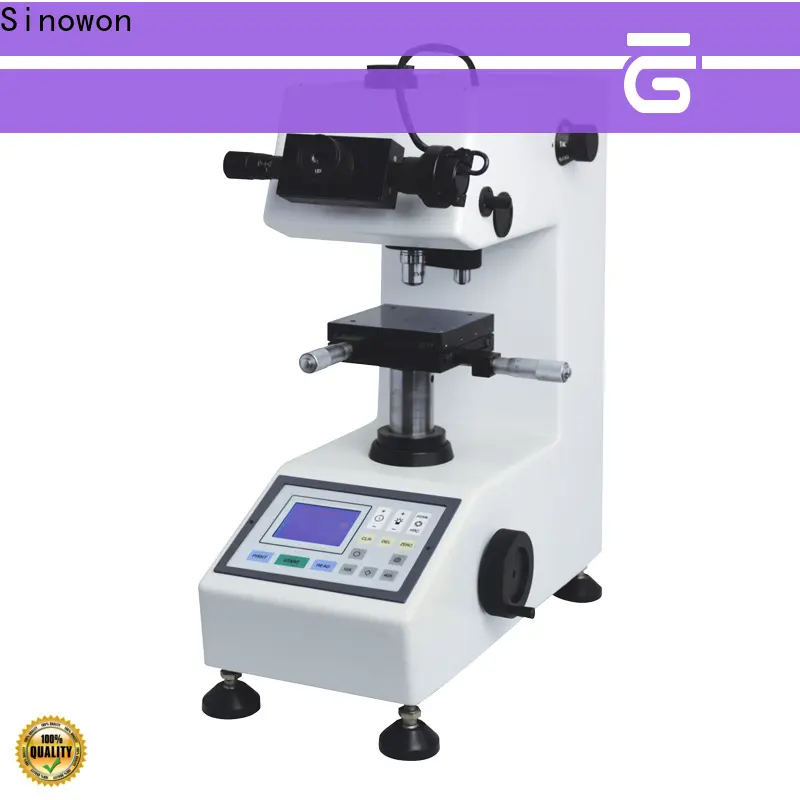

Sinowon micro vickers hardness tester manufacturer for thin materials1

Company Advantages
1. Various kinds of tests for Sinowon hardness tester calibration services has been conducted by third-party labs. These tests include dimensional stability testing, harmful substances content testing, and colorfastness testing. It is supported by multiple languages say English, Turkish, and German
2. With a broad marketing channel, this product will be popular in the market. It is well recognized by more than 5000 customers
3. The product is not easily deformed due to large temperature difference. Its heavy-duty components and parts are designed to withstand tremendous abuse in a constantly changing environment. Many international famous manufacturers choose this product for its premium quality
4. The product features an intelligent design. Any time there is a problem in the production process, it either shuts down to prevent further problems or fixes the issue internally. A team of experienced talents is gathered to support the product sales
5. This product is designed to be protective. It can protect objects from shock, vibration, compression, temperature and more. The product is CE certified for the European market

◆ Micro-Vickers hardness tester with button control panel;

◆ Strong and stable body;

◆ LED illumination, light, adjustable, long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 200 lines encode with precise measurement;

◆ D1 and D2 exchange automatically(Vexus MHV-2000);

◆ Two indenters available(Vickers and Knoop);

◆ Can be developed to semi-automatically or full-automatically system.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Model		Vexus MHV-1000Plus	Vexus MHV-2000Plus
Code#		823-113Plus	823-213Plus
Test   Load	gf	10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000 / 2000 (option)
	mN	98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807/19614 (option)
Loading Mechanism		Automatic loading   and releasing method 50 ~100 µm/s
Dwell Time		5 ~ 99 s
Turret Mechanism		Automatic
Objective		40x/10x    ( Option:20x,80x )
Magnification of   Microscope		For measurement   :400x ( Objective 40X and Eyepiece 10X )
		For observation :   100x ( Objective 10X and Eyepiece 10X )
Measuring   Microscope		Electronic
Max. Measuring   length		230 µm  ( In case of 400x )
Mix. Measuring unit		0.1µm   (0.01µm for TS type)
Max.Specimen   Height		90mm
Max.Specimen Depth		110mm
Measuring Hardness   Scale		HV,  HK
X-Y Stage		Manual  type
Dimensions		110 × 110 mm
Max. movement		25 × 25 mm
Min. micro   graduation		1/100 mm
Light Source		LED Illuminator
Print Output		Measured data and   statistic data  :( Max. Value / Min.   value / Mean value / Range / Standard deviation )
Accuracy		Conform to :  JIS B -7735, ASTM E-384 and ISO 146
Photographic Device		Capable to mount   photographic device  ( Option)
Dimensions		W 190 × D 430 × H   520 mm
Weight		40Kg
Power Supply		Single phase AC 220   V  50/60 Hz

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a world-renowned supplier of hardness tester calibration services .
2. The factory has implemented a strict QC process system. This system includes preliminary inspection (ensuring the quality of the raw materials), in-process quality control (ensuring machining quality), and output quality control of finished products (testing on the performance and reliability).
3. Sinowon Innovation Metrology Manufacture Limited. is committed to providing the most advanced technology and micro vickers hardness tester products for modern life. Call now!
