Sinowon microscope factory price for steel products
Model:
VM-457
Code#:
451-457
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. microscope is strongly recommended for its digital binocular microscope design. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. Complete production lines will be helpful to the production capacity of Sinowon. The product is excellent in dust prevention
3. The product is not susceptible to deformation. Its bulky metal structure is built to withstand heavy-duty use and abuse. The product is designed by professional designers to be user-friendly
4. The product does not have any unpleasant smell. During the production process, toxic flavor chemicals that produce unpleasant smells are completely removed. The quality is reliable and the service life is long
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has established a loyal customer base.
2. We are honored with titles - 'National Contract and Credit Enterprise ' and 'Top Brand in this industry'. These titles are a strong recognization and evidence of our comprehensive competence and operation concept.
3. Sinowon Innovation Metrology Manufacture Limited. will continuously improve technological, industrial and global market competencies. Contact!
1. microscope is strongly recommended for its digital binocular microscope design. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. Complete production lines will be helpful to the production capacity of Sinowon. The product is excellent in dust prevention
3. The product is not susceptible to deformation. Its bulky metal structure is built to withstand heavy-duty use and abuse. The product is designed by professional designers to be user-friendly
4. The product does not have any unpleasant smell. During the production process, toxic flavor chemicals that produce unpleasant smells are completely removed. The quality is reliable and the service life is long
Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection and other fields.
Product Feature
◆ Sample and generous design, easy to use;
◆ HDMI camera and clear image, by USB or SD card storage pictures and video;
◆ 0.7~4.5X Horizontal continuous zoom lens, easy change the objective lens and save your time;
Specification

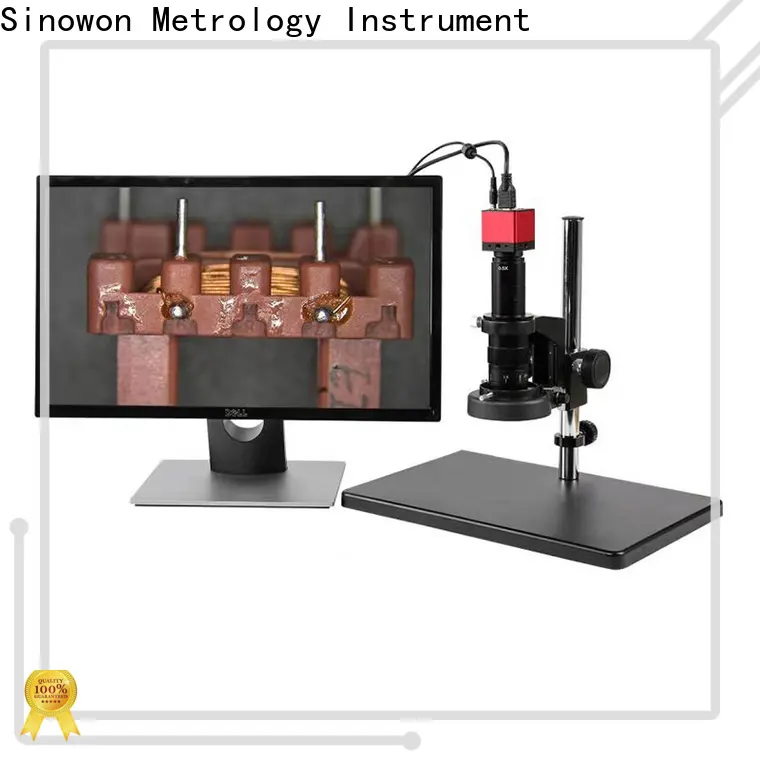

| Product Name | HD Video Measuring Microscope VM-457 |
| Model | VM-457 |
| Code# | 451-457 |
| Electronic Magnification | 33.47~215.19X( HDMI 16:9 21.5''monitor) |
| Optical Objective | 0.7X~4.5X zoom Lens |
| Magnification ratio：6.5:1 | |
| 1X C-mount Camera Adapter | |
| Camera Parameters | 2 Mega pixel (1920*1080) |
| Target size: 1/3inch | |
| Number of frames：30fps | |
| Camera Function | Manual Focus |
| Cross Line | |
| Take picture and video | |
| HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Light System | Surface light: Adjustable LED Surface Iight |
| Ring Fiber source (option) | |
| Microscope Stand | Z-axis Travel: 480mm |
| Coarse adjustment | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 450*310*525mm |
| Weight | ≈12KG (without monitor) |
Standard Delivery
| Commodity | Model | QTY |
| HD Measuring video Microscope | VM-700 | 1set |
| Power cable | 250V/6A | 1pc |
| Power adapter | DC12V | 1pc |
| HDMI 16:9 21.5” monitor | DELL | 1PC |
| Certificate/ Operation manual/ Packing list | Documents | 1 pc each |
| Mouse | 1pc |
Optional Delivery
| Commodity | Model | QTY |
| 0.5X Auxiliary objective | 423*053 | 1pc |
| 2X Auxiliary objective | 423*203 | 1pc |
| 16GB USB | 484-465 | 1pc |
