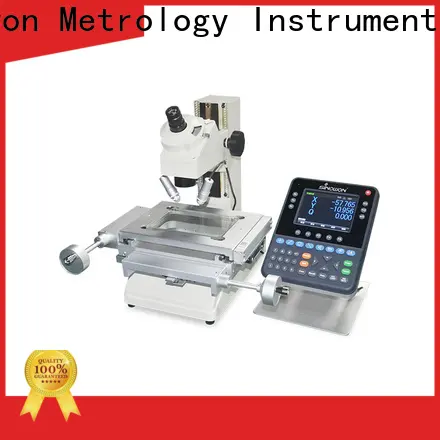

Sinowon nikon toolmakers microscope design for measuring
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Sinowon tools maker microscope is produced with high precision. Its dimensional accuracy is controlled by the computer and guaranteed by the precise CNC saw. The product is analyzed and tested cautiously before packing
2. Using this product, people will be comfortable with their energy bills. They can save a lot of money spent on paying bills. The product is well known for high accuracy and great stability
3. It can give users the greatest sleep experience on the market. It is naturally breathable, and sucks up moisture and reduces the experience of sweating. Imported materials and accessories are used in product manufacturing
![Sinowon nikon toolmakers microscope design for measuring 8]()
![Sinowon nikon toolmakers microscope design for measuring 9]()
![Sinowon nikon toolmakers microscope design for measuring 10]()
![Sinowon nikon toolmakers microscope design for measuring 11]()
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. always provides customers with reliable nikon toolmakers microscope products.
2. The factory has established a strict quality management system. This system covers the requirements for incoming materials and demands for the production process. The implementation of the system has obviously standardized the processes.
3. Everyone at Sinowon is responsible for customers' success! Ask online!
1. Sinowon tools maker microscope is produced with high precision. Its dimensional accuracy is controlled by the computer and guaranteed by the precise CNC saw. The product is analyzed and tested cautiously before packing
2. Using this product, people will be comfortable with their energy bills. They can save a lot of money spent on paying bills. The product is well known for high accuracy and great stability
3. It can give users the greatest sleep experience on the market. It is naturally breathable, and sucks up moisture and reduces the experience of sweating. Imported materials and accessories are used in product manufacturing
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature
◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;
◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |
| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |
| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |
| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |
| Surface Illumination | Ring LED illumination brightness adjustable |
| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
