Sinowon optical measurement factory price for thin materials1
Product Feature
◆ The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
◆ Coating process reflector, clearer image and great dustproof;
◆ Adjustable contour and surface illumination, to meet with difference workpiece demand;
◆ Imported high light and long using life LED illumination ,to ensure precision measurement demand;
◆ High resolution optical system with clear image and magnification error is less than 0.08%;
◆ Powerful Bi-axial fan cooling system，highly increase using life;
◆ Powerful and colorful DRO DP400，realized fast and accurate 2D Measurement;
◆ Built-in Mini-printer, can print and save data;
◆ With standard 10X objective, optional 5X,20X，50X，100X objective，rotary table, foot switch ,clamp, etc.
Specification

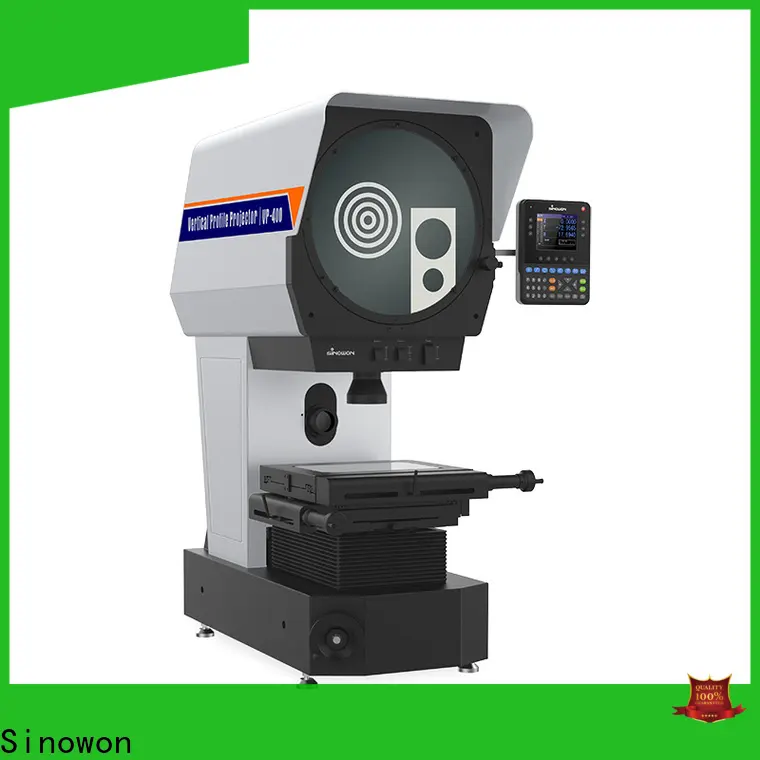

| Product Name | Ø400mm Digital Vertical Profile Projector | ||
| Reverse Image | VP400-2010 (#511-410) | VP400-2515 (#511-420) | VP400-3020(#511-430) |
| Obverse Image | VP400-2010Z(#511-410Z) | VP400-2515Z(#511-420Z) | VP400-3020Z(#511-430Z) |
| Metal Stage Size | 308x408mm | 308x408mm | 458x358mm |
| Glass Stage Size | 198x306mm | 198x306mm | 356x248mm |
| Stage Travel | 200x100mm | 250x150mm | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm | 1003x617x1309mm | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm | 1200x800x1580mm | 1200x800x1580mm |
| Focusing | 100mm | ||
| Accuracy | ≤3+L/200(um) | ||
| Resolution | 0.0005mm | ||
| Load Weight | 10Kg | ||
| Screen | Dia:φ412mm,Measurement Range ≤ Ø400 | ||
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |||
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout | ||
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED | ||
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH | ||
| Power Supply | AC110V/60Hz; 220V/50Hz,150W | ||
| Gross/Net Weight | 280/230kg | 280/230kg | 280/230kg |
