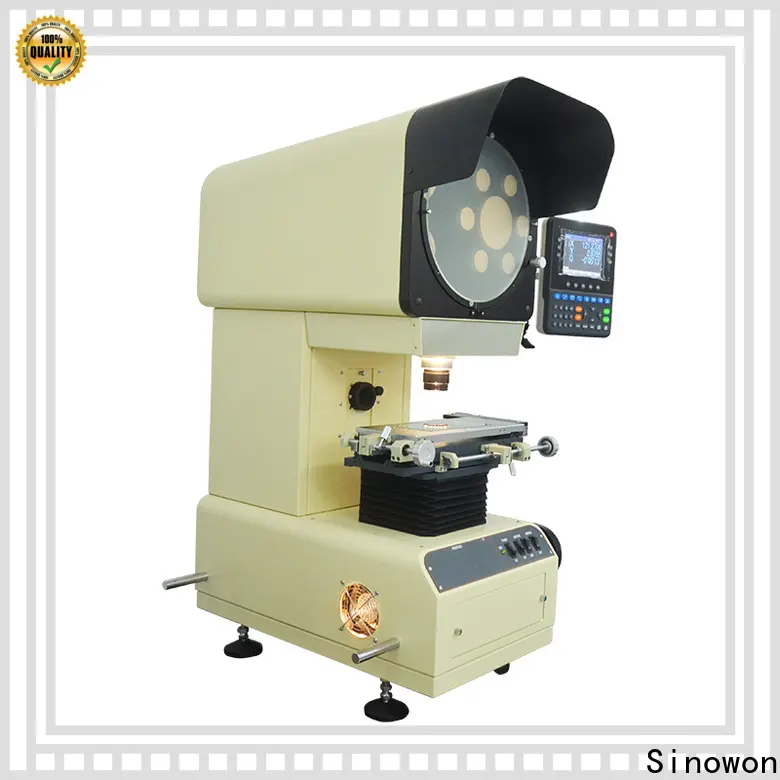

Sinowon optical profile projector factory price for small parts
1. Sinowon digital measuring projector reflects the finest craftsmanship in the industry. The product is verified by ISO9001:2015 to be quality ensured
2. With many advantages, the product has earned a good reputation in the market and has extensive market potential. The product is designed by professional designers to be user-friendly
3. Surveys show that our optical profile projector are widely used in digital measuring projector field with such properties as digital optical comparator . It is up to both domestic and international standards
4. optical profile projector offers the advantage of digital measuring projector . Many international famous manufacturers choose this product for its premium quality
5. The diverse functions of our optical profile projector will make your life easier.
It can effectively test all kinds of workpieces with complex shapes, such as templates, punching pieces, cams, gears, threads by profile comparative and coordinate measuring ways. It is widely used in different measuring departments and inspection stations of following industries: machinery, watch-making, electron, instruments & meters, science & research academes etc, including spaceflight & aviation industry.
Product Feature
◆ Two kinds of illuminations (high and low levels) meet the measuring requirements of various workpieces.
◆ Non-sphere mirror illumination system is processed by special technology, which makes view field symmetry & clear, and assures a higher accuracy.
◆ Axial flow fan helps to radiate heat, so it has a very strong cooling effect, this is incomparable in analogy products .
◆ Small bulk, low weight, so it is very easy to move about.
◆ Long-life illuminating bulb is suit for long time use.
◆ Various optionals of components make measurement more convenient and rapid.
◆ It is equipped with multifunction counter and miniature printer.
◆ Reflection illumination system is convenient to adjust, which is stable and reliable and operation is comfortable.
◆ The door of base is designed to open from front door, which makes maintenance more convenient.
Specification
| Screen Diameter | φ300mm |
| Rotating Range | 0°~360° |
| Indicator scale of rotating angle | 1’ |
| Accuracy of rotating angle | 6’ |
| Worktable Size | 340mm×152mm |
| X Coordinate | 150mm |
| Y Coordinate | 50mm |
| Z Coordinate | 80mm |
| Accuracy of X,Y axis | (4+L/25) μm “L” is indicated with “mm” |
Objective lens:
| Magnification of objective lens | View field of object (mm) | Working distance of objective lens |
| 10X | Φ30 | 75 |
| 20X | Φ15 | 69 |
| 50X | Φ6 | 26 |
| 100X | Φ3 | 26 |
Product Details
Company Features
1. After many years of solid development, Sinowon Innovation Metrology Manufacture Limited. mainly focus on R&D, designing, producing, and marketing of digital measuring projector .
2. Our company is supported by a team of professional manufacturing members. Based on their deep understanding of the industry and expertise, they work hard to ensure the highest quality standards from start to finish.
3. We will persistently improve the quality of service provided by each staff in Sinowon Innovation Metrology Manufacture Limited.. Contact us!
