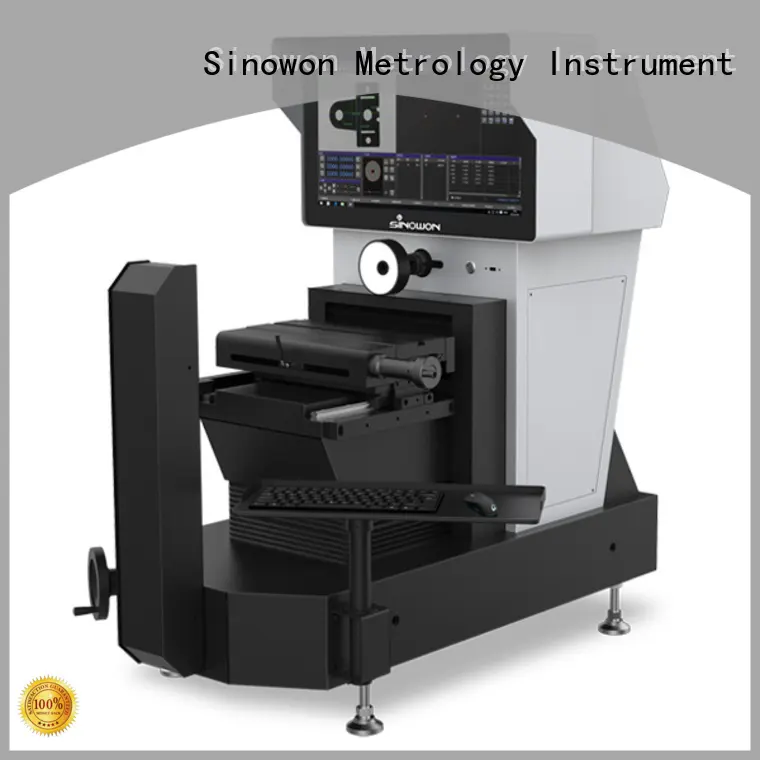

Sinowon optical profile projector from China for measuring 1
Sinowon optical profile projector from China for measuring 2
Sinowon optical profile projector from China for measuring 1
Sinowon optical profile projector from China for measuring 2

Sinowon optical profile projector from China for measuring

Model:
PH-3015
Code#:
#542-310
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO10360
Certificate:
CE
Inquiry
Company Advantages
1. Developing the design for Sinowon profile measuring machine involves four main factors. They are respectively the color story, design functionality, technical package, and garment patterns. Its packing is made seriously to guarantee the safety during shipment
2. This product caters to the varied requirements of our customers in the industry. Imported materials and accessories are used in product manufacturing
3. The product quality has been strictly controlled by professional QC team. It is easy to operate, with fast speed
4. The product keeps operating smoothly throughout its lifetime. The quality is reliable and the service life is long


Sinowon optical profile projector from China for measuring 3



Product Feature


The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;

With precision toothless rod and fast movement locking device, ensure return error is within 2um;

High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200 um;

HD zoom lens and HD color digital camera, ensure clear image without distortion;

With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;

With powerful iMeasuring2.1 software system , to enhance the control quality;

Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;

Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption;


Specification



Product NameHorizontal Video Projector
ModelPH-3015
Code##542-310
Working Stage Travel355X125mm
X/Y-axis Travel200X120mm
Z axis110mm
Measurement Accuracy*≤3+L/200um
Resolution0.0005mm
CCDHD700 TVL Color CCD
Zoom Lens**HD 6.5X Detented Zoom Lens
Optical Magnification:0.7X-4.5X; Video Magnification:23X~158X(21.5”monitor)
Illuminating System (Software Control)Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination
Contour: LED Parallel illumination
LED Laser navigation illumination
Working EnvironmentTemp:20℃±2℃,Temp Variation<2℃/hr, Humidity:30%-80%RH,Vibration<0.002g,< 15HZ
Measurement SoftwareiMeasuring 2.1
SystemSupport XP, WIN7, WIN8,WIN10 32/64 Bit
PowerAC110V/60Hz; 220V/50Hz,600W
Dimension1120 x 720 x1100mm
Weight165kg
