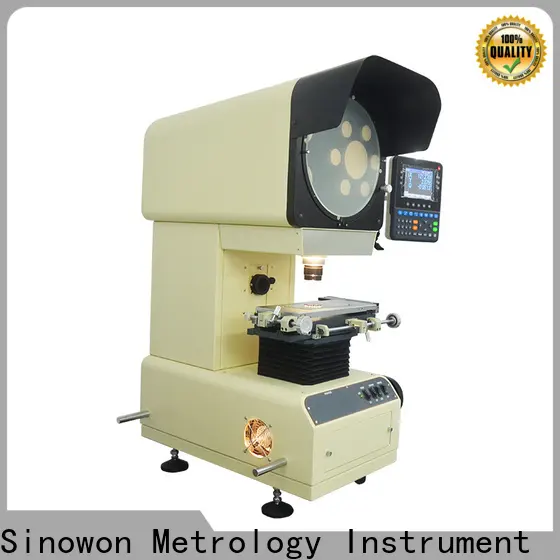

Sinowon optical profile projector personalized for small areas
It can effectively test all kinds of workpieces with complex shapes, such as templates, punching pieces, cams, gears, threads by profile comparative and coordinate measuring ways. It is widely used in different measuring departments and inspection stations of following industries: machinery, watch-making, electron, instruments & meters, science & research academes etc, including spaceflight & aviation industry.
Product Feature
◆ Two kinds of illuminations (high and low levels) meet the measuring requirements of various workpieces.
◆ Non-sphere mirror illumination system is processed by special technology, which makes view field symmetry & clear, and assures a higher accuracy.
◆ Axial flow fan helps to radiate heat, so it has a very strong cooling effect, this is incomparable in analogy products .
◆ Small bulk, low weight, so it is very easy to move about.
◆ Long-life illuminating bulb is suit for long time use.
◆ Various optionals of components make measurement more convenient and rapid.
◆ It is equipped with multifunction counter and miniature printer.
◆ Reflection illumination system is convenient to adjust, which is stable and reliable and operation is comfortable.
◆ The door of base is designed to open from front door, which makes maintenance more convenient.
Specification
| Screen Diameter | φ300mm |
| Rotating Range | 0°~360° |
| Indicator scale of rotating angle | 1’ |
| Accuracy of rotating angle | 6’ |
| Worktable Size | 340mm×152mm |
| X Coordinate | 150mm |
| Y Coordinate | 50mm |
| Z Coordinate | 80mm |
| Accuracy of X,Y axis | (4+L/25) μm “L” is indicated with “mm” |
Objective lens:
| Magnification of objective lens | View field of object (mm) | Working distance of objective lens |
| 10X | Φ30 | 75 |
| 20X | Φ15 | 69 |
| 50X | Φ6 | 26 |
| 100X | Φ3 | 26 |
