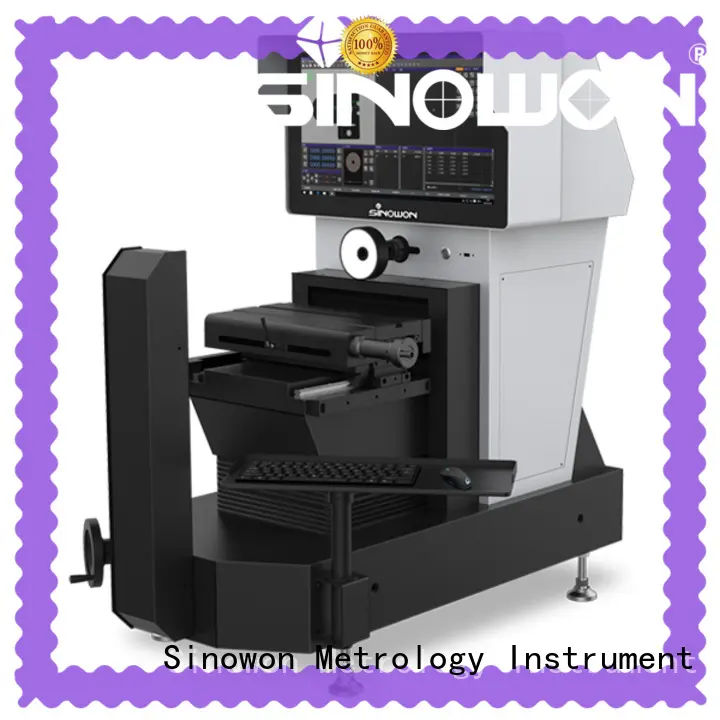

Sinowon practical optical profile projector customized for measuring
1. The raw materials selection of Sinowon rational profile projector is taken into accont seriously.
2. The product is designed for rigorous working conditions. Its excellent mechanical properties enable it to work stably in low and high temperature, humid environment, or corrosive conditions.
3. This product is not easy to wrinkle. Different anti-wrinkle techniques, such as nano, liquid ammonia treatment or foam finishing techniques, are used in the production process to improve their wrinkle recovery properties.
4. The product has captured the market opportunities and has a wide range of applications.
5. The product takes a lead in its market and has a broad market application prospect.
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;
◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;
◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200 um;
◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;
◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;
◆ With powerful iMeasuring2.1 software system , to enhance the control quality;
◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;
◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption;
Specification
| Product Name | Horizontal Video Projector |
| Model | PH-3015 |
| Code# | #542-310 |
| Working Stage Travel | 355X125mm |
| X/Y-axis Travel | 200X120mm |
| Z axis | 110mm |
| Measurement Accuracy* | ≤3+L/200um |
| Resolution | 0.0005mm |
| CCD | HD700 TVL Color CCD |
| Zoom Lens** | HD 6.5X Detented Zoom Lens |
| Optical Magnification:0.7X-4.5X; Video Magnification:23X~158X(21.5”monitor) | |
| Illuminating System (Software Control) | Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination |
| Contour: LED Parallel illumination | |
| LED Laser navigation illumination | |
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ |
| Measurement Software | iMeasuring 2.1 |
| System | Support XP, WIN7, WIN8，WIN10 32/64 Bit |
| Power | AC110V/60Hz; 220V/50Hz,600W |
| Dimension | 1120 x 720 x1100mm |
| Weight | 165kg |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. products excellence performance optical profile projector .
2. Sinowon Innovation Metrology Manufacture Limited. has a number of imported production and processing equipment.
3. Sinowon Innovation Metrology Manufacture Limited. aims to be an highly advanced optical measurement machine manufacturer. Call now! Under the guidance of spirit of enterprise, Sinowon has been adhering to pursuing the better quality of visual measurement . Call now!
