Sinowon practical rockwell test directly sale for small areas
Model:
SHR-187.5
Code#:
811-141
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ISO 6508，ASTM E18，GB/T230
Certificate:
CE
Product Comparison
Sinowon insists on the use of high-quality materials and advanced technology to manufacture vision measuring machine. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.Sinowon's vision measuring machine has better performances in the following aspects.
-
v s
Enterprise Strength
- Based on customer's needs, Sinowon fully exerts our own advantages and market potential. We constantly innovate service methods and improve service to meet their expectations for our company.
1. Sinowon rockwell hardness test equipment is rigorously tested from the beginning of the production to the finished product so as to achieve a better barbequing effect.
2. Thanks to the excellent properties of rockwell hardness test equipment , rockwell test is popular among customers.
3. The product is easy to clean. People can use a damp cloth or scrubbing brush to wipe the dirt or stain easily.
4. The use of this product can help save people's energy costs and reduce carbon emissions. These benefits would last for many years.
Product Feature

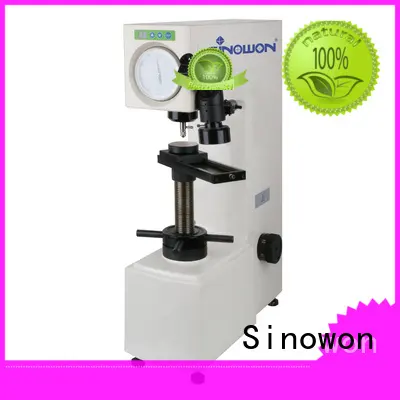

◆ SHR-187.5 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
◆ SHR-187.5 equips 7-testing-foce and 5-indenter, it is universal to measure a lot of material.
◆ SHR-187.5 dwell time from 1 to 60S can be setup by the “time key” on the panel, it is much convenient than the setup on the manual hardness tester;
◆ SHR-187.5 force knob adopts the metal material to replace the plastic, it improves the instrument using-life greatly;
◆ SHR-187.5 loading, dwell and unloading is driven by electronic motor automatically, doesn’t need the operator to handle it, it eliminates the human operating error maximum.
Specification
| Product Name | Motorized Universal Hardness Tester |
| Model | SHR-187.5 |
| Code# | 811-141 |
| Rockwell Scales | HRA, HRB, HRC |
| Rockwell Testing Force | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) |
| Brinell Scales | HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5 |
| Brinell Testing Force | 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N) |
| Vickers Scales | HV 30、HV100 |
| Vickers Testing Force | 30Kgf(294.2N)、100Kgf(980.7N) |
| Rockwell Hardness Indication | Analogue Display |
| Rockwell Resolution | 0.5HR |
| Loading Control | Motorized |
| Magnification of Microscope | Brinell:37.5x; Vickers:75x |
| Dwell Time | Adjustable 2~60s |
| Max. Height Of Specimen | Rockwell:170mm; Brinell, Vickers:140m |
| Instrument Throat | 165mm |
| Dimension(LxWxH) | 520 x215 x700mm |
| Packing Dimension | 630 x440 x960mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | ISO 6508，ASTM E18，GB/T230 |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been dedicated to a comprehensive development that includes the R&D, design, manufacture, and sales of rockwell hardness test equipment .
2. The factory has completely independent production lines. These lines are reasonably arranged and each of them has clear and specific manufacturing tasks, which effectively improves production efficiency.
3. Our goal is to provide customers with the highest quality products and excellent service at the best price/performance ratio. We aim at being a long-term strategic business solution with all our customers. Our mission is to use our expertise in power conversion to increase our customers’ competitiveness and to contribute to reducing their environmental impact.
