Sinowon precise cutting machine factory for LCD

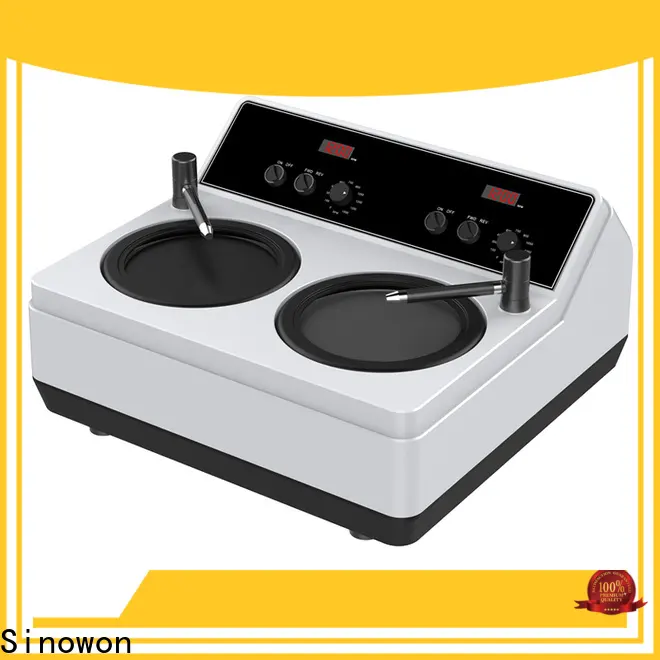

GP-202D/252D/302D are double wheel grinder and polisher for metallographic specimen preparation. The strong and variable speed drive allows application for all working steps. Each wheel speed can be changed individually.
Product Feature
◆ Simple operation for grinding and polishing;
◆ Variable speed. It is determinable through a rotating switch and shown digitally on the display. Each wheel speed can be changed individually;
◆ CCW and CW direction control;
◆ The water hose with universal direction can be pulled out for cleaning the basin;
◆ Plastic disposable bowl liner for ease of cleaning;
◆ Hard anodized aluminum working wheel;
◆ Durable composite construction, antirust;
◆ Powder coated aluminum housing, durable and reliable.
Specification
Description | GP-202D | GP-252D | GP-302D |
Wheel (mm) | Ø203 | ○Ø203●Ø254 | ○Ø203 ○Ø254 ●Ø305 |
Speed(rpm) | 100-1000 | 100-1000 | 100-1000 |
Motor | 500W | 600W | 800W |
Power | 110/220V | ||
Paper Ring | ● | ● | ● |
Splash guard | ● | ● | ● |
Cover | ● | ● | ● |
Grinding paper | ● | ● | ● |
Polishing Cloth | ● | ● | ● |
Diamond Spray | ○ | ○ | ○ |
Diamond Slurry | ○ | ○ | ○ |
Alumina Powder | ○ | ○ | ○ |
Recirculating Tank | ○ | ○ | ○ |
●Standard○Option
