Sinowon professional digital readout suppliers factory price for cast iron
1. Sinowon digital readout suppliers is carefully engineered at a materials level. Factors such as reflectivity, diffusion, texture, and elasticity are taken into serious consideration. It can be customized according to customers' needs
2. This product can be still regarded as a new one after frequent washing or drying. People can believe that it will not become fading or dingy. The product is analyzed and tested cautiously before packing
3. The electromagnetic compatibility of this product is under reasonable control. It is ensured that it does not generate, or is not affected by electromagnetic disturbance. The product is verified by ISO9001:2015 to be quality ensured
Product Feature

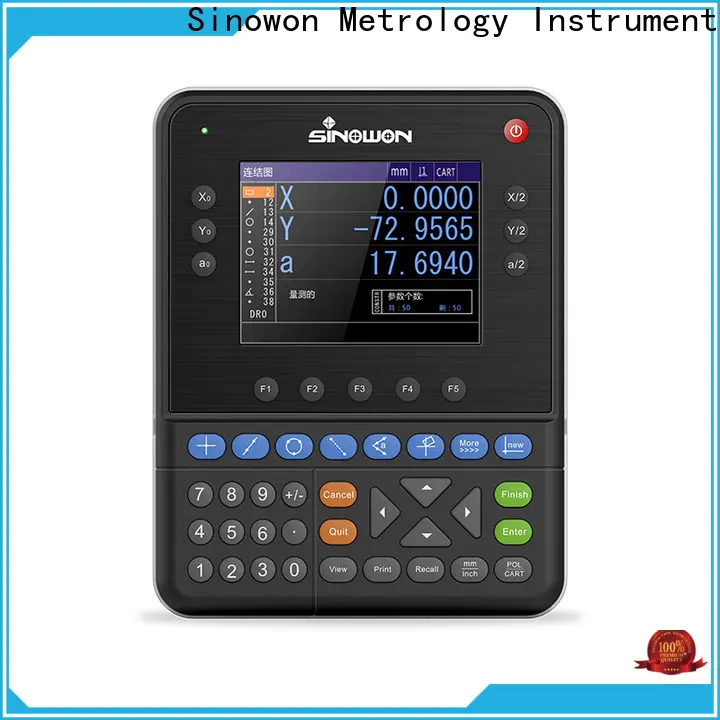

◆ 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
◆ Save 100 permanent image elements, can set and save current date;
◆ Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
◆ Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
◆ Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:
◆ Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
◆ With polar and coordinate system, and can display millimeter and inch, and can shift easily;
◆ With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
◆ Support multiple language:Chinese, English and other language;
Technical Specification
| Model | DP400(#510-340) |
| Language | Simple Chinese, Complicated Chinese, Portuguese, German and English, etc. |
| LCD Screen Size | 115mm×85mm |
| LCD Screen Resolution | 640*480 |
| Digital Display Range | 8Digits(With Decimal Point) |
| Display Axis | 3-axis (X,Y,Z/Q) |
| Z/Q Display Model | Length or Angle |
| Angle Display Model | Degree, Minutes and Second or Degree |
| Linear Scale Signal | TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution | 0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate | 4800,9600,14400,19200,38400,57600 |
| Data Output Port | RS232，DB-9 Parent interface |
| Operation Keyboard | Sealed Silicone touch-type keyboard |
| Expansion port | Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply | AC90V-240V,15W |
| Operation Environment | Working Temperature： 0 ℃～40 ℃；Storage Temperature：-10 ℃～60℃；Relative Humidity：<90%RH |
Product Details
Company Features
1. Our high-technology digital readout suppliers is the best.
2. We view our culture as a competitive advantage and strive to create an environment where smart, motivated and creative people succeed. We think big and work hard. Please contact us!
