Application Scope
Sinowon's hardness testing machines can meet the different needs of customers.Sinowon is committed to producing quality vision measuring machine and providing comprehensive and reasonable solutions for customers.
Product Details
Sinowon adheres to the principle of 'details determine success or failure' and pays great attention to the details of optical measurement instruments.Sinowon has professional production workshops and great production technology. optical measurement instruments we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.
Company Advantages1. The Sinowon stereo inspection microscope is fabricated by our deft professionals.
2. The product features anti-glare protection. The touch screen of this product uses the technology of high-definition backlit screen to effectively prevent glare.
3. The product can absorb foot sweat. It is designed to provide a dry and ventilated foot environment by adopting the double separation structure.
4. Sinowon Innovation Metrology Manufacture Limited. is responsible for final quality testing result.

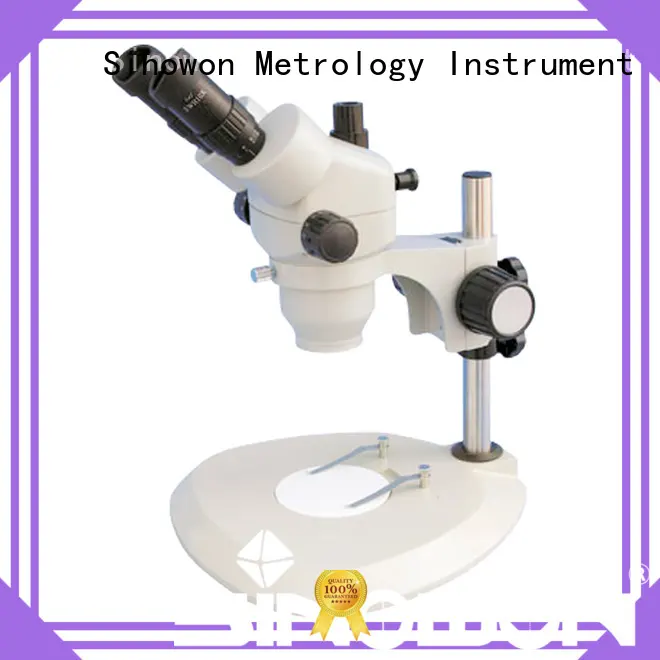

![Sinowon professional stereo zoom microscope personalized for precision industry 5]()
◆ With Zoom A5(binocular) and Zoom A5T(trinocular);
◆ Brand-new optical design, the best reproduction and true color image;
◆ Kinds of stands and attachments are available;
◆ Applied to modern biology research, semiconductor and the other science and technology industry field to meet high precision requirement.
Specification
| Model | Binocular Zoom A5 |
| Code# | 411-222 |
| Objective | 0.7x~4.5x Zoom Objective, Zoom Ration 6.4x |
| Eyepiece | High eye-point and wide-field eyepiece WF10X/20mm Optional WF15X/15mm,WF20X/10mm and object micrometer is available |
| Magnification | 7x~45x,it can extend to 3.5x~180x |
| Zoom Driver | Horizontal Axial Driver Control Knobs |
| Working Distance | 100mm(effective distance),it can extend to 30mm~165mm |
| Microscope Head | Binocular Observe Head with 45°incline and 360°rotatable |
| Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter |
| Microscope Holder | Focus adjustment range 50mm,focusing knobs elasticity adjustable Drawtube diameter 76mm |
| Microscope Stand | Pillar diameter 32mm and high 240mm |
| Black & white working board diameter 95mm |
| Auxiliary Objective | 0.5X/165mm,1.5X/45mm and 2X/30mm optional |
Optical Specification:
| Eyepiece | Main Body | Auxiliary Objective |
| 0.5X | 1X | 1.5X | 2X |
| 0.7x~4.5x | (#416-312) | (#416-322) | (#416-332) | (#416-342) |
| 10X | Total Magnification | 3.5x~22.5x | 7x~45x | 10.5x~67.5x | 14x~90x |
| Field of view | 57.1~8.9mm | 28.6~4.4mm | 19~3mm | 14.3~2.2mm |
| 15X | Total Magnification | 5.25x~33.75x | 10.5x~67.5x | 15.75x~101.25x | 21x~135x |
| Field of view | 43.8~ 6.7mm | 21.1~3.3mm | 14.3~2.2mm | 10.7~1.7mm |
| 20X | Total Magnification | 7x~45x | 14x~90x | 21x~135x | 28x~180x |
| Field of view | 28.6~ 4.4mm | 14.3~2.2mm | 9.5~1.5mm | 7.1~1.1mm |
| Working Distance(mm) | 165 | 100 | 45 | 30 |
Company Features1. After years of management, exploration and planning, Sinowon Innovation Metrology Manufacture Limited. has become a large-scale and powerful manufacturer of stereo zoom microscope .
2. Modern production machinery and equipment are at our disposal. Most of them are computer-aided, ensuring the high precision, repeatability, and perfect production results that our customers expect.
3. We can promise high quality and excellent service for stereo inspection microscope . Get quote! We are committed to playing a key role in achieving a sustainable future. We promote responsible and ethical business practices, actively support the activities of the communities in which we live and work and foster environmentally sound operations. Sinowon products has met the market demand at home and abroad. Get quote! We think sustainability is an important part of our business. We’re dedicated to promoting environmentally sound production practices that help minimize waste and reduce harmful emissions to the air, water and land.
