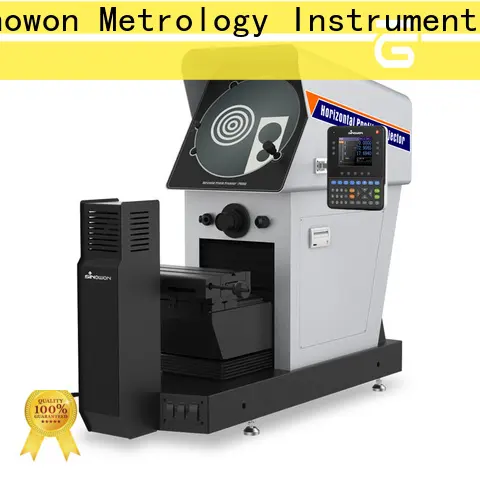

Sinowon profile projector least count manufacturer for commercial
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes lifting drive more comfortable and stable;
◆ Coating process reflector, clearer image and great dustproof;
◆ Adjustable contour and surface illumination, to meet with difference workpiece demand;
◆ Imported high light and long using life LED illumination ,to ensure precision measurement demand;
◆ High resolution optical system with clear image and magnification error is less than 0.08%;
◆ Powerful Bi-axial fan cooling system，highly increase using life;
◆ Powerful and colorful DRO DP400，realized fast and accurate 2D Measurement;
◆ Built-in Mini-printer, can print and save data;
◆ With standard 10X objective, optional,20X，50X objective，rotary table, foot switch ,clamp, etc.
Specification
| Product Name | Ø350mm Digital Horizontal Profile Projector |
| Mode | PH350-2010 |
| Code # | 512-350 |
| Working Stage Size | 355x126mm |
| Working Stage Travel | 200x100mm |
| Focusing | 90mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Loading Weight | 15Kg |
| Screen | Screen diameter:φ380mm, Effective range ≥ Ø350mm |
| Rotation Angle 0~360° ;Resolution: 1’or 0.01°，accuracy 6’ | |
| Digital Readout | DP400 (510-340)Multifunction colorful LCD digital readout |
| Illumination | Contour Illumination：3.2V/10W LED; Surface Illumination：220V/130W halogen lamp |
| Working Environmental | Temp：20℃±5℃，Humidity：40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,200W |
Optional Objectives
| Magnification | 10X | 20X | 50X |
| Field of View | φ35mm | φ17.5mm | φ7mm |
| Working Distance | 75mm | 69mm | 44mm |
