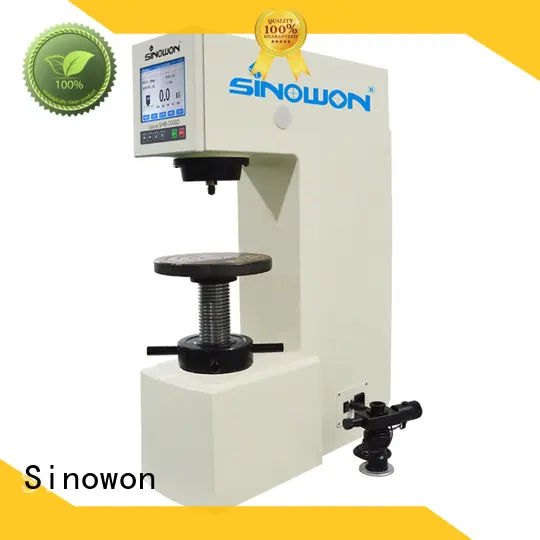

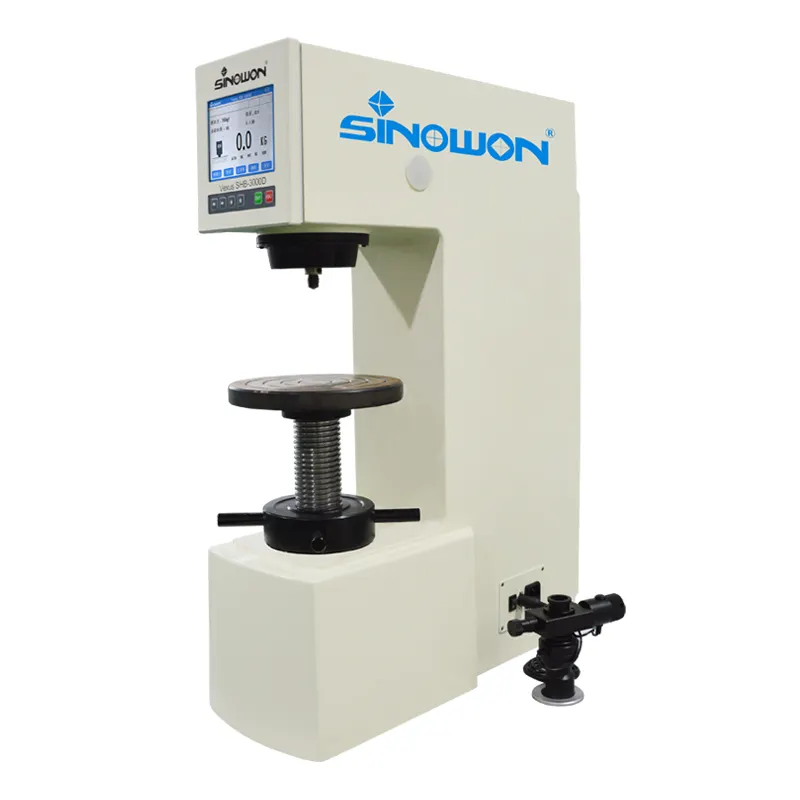

  ◆ Vexus SHB-3000D differs from like products is the close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology and digital measurement indentation technology;
◆ High accuracy close loop loading sensor replace traditional weights loading method, to realize automatic loading, dewell and unloading, makes easier installation and better measurement accuracy;
◆ Equips with 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast;
◆ One touch operation of indentationmeasurement by high resolution objective, largely eliminate human error and avoid annoyance to check indentation comparison table;
◆ Auto hardness conversion from Brinell scale HBW to HK, HV, HRA, HRB, HRC, superficial rockwell scales, etc;
◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.
| Name | Color Touch Screen Digital Brinell Hardness Tester | |
| Model | Vexus SHB-3000D | |
| Code# | 831-120 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Data Transfer | Bluetooth;RS232 is optional | |
| Brinell Range | (8-650) HBW | |
| Hardness Display | LCD Display | |
| Languages | Chinese, English, German, Portuguese, Turkish, Czech, Korean | |
| Magnification of Eyepiece | 20x Mechanic Microscope | |
| Conversion Standard | ASTM、DIN | |
| Vertical Space | 225mm | |
| Horizontal Space | 135mm | |
| Dimension | 545 x235 x755mm | |
| Gross/Net Weight | 160Kg/130Kg | |
| Power Supply | AC220V/50Hz;110V/60Hz | |
| Conform Standard | GB/T4340、JIS Z2245、ASTM—E92、ISO6507 | |
| Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5% | ≤ 3.5% |
| 125<HBW≤225 | ≤± 2.5% | ≤ 3.0% |
| HBW> 225 | ≤± 2.0% | ≤ 2.5% |
