Sinowon quality brinell hardness test equipment series for small areas

Company Advantages
1. brinell hardness test equipment is featured with leading design. It is well recognized by more than 5000 customers
2. The product has been widely acknowledged by customers and plays an important role in the industry. Imported materials and accessories are used in product manufacturing
3. The product performs stably in shock and vibration resistance. It is not affected by thunder and lightning, collision, or impact. Its packing is made seriously to guarantee the safety during shipment
4. The product is durable in use. It is made with quality materials which can withstand wear and tear in daily use. It is supported by multiple languages say English, Turkish, and German

◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

◆ The dot positioning uses a three-point position to be more precise, and the repeated dot position is not skewing.

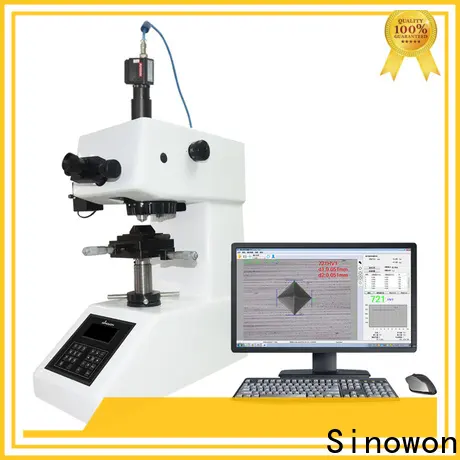

◆ It is equipped with 10X and 40X HD lens and HD USB camera, excellent image quality in optical imaging systems and video measurements;

◆ The operation interface adopts the humanized format, the digital area and the function distinguish the column type, the menu function is classified clearly and meticulously, and the light brightness, the menu selection and the objective lens selection all have the memory function.

◆ The powerful video measurement software iVicky V2.0 can convert the measured Rockwell hardness into Brinell Hardness HBW and Rockwell hardness HRC, HRA, HRB, and can also generate hardness gradient curve. Output WORD format measurement report.

◆ Measurement through the measuring software eliminates the operator's measurement error with visual optical readings, and effectively guarantees the authenticity and accuracy of Vickers hardness measurement results.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Product Name		Micro Hardness Tester with Measurement Software		Auto-Turret Micro Hardness Tester with Measurement Software
Model		MV-1000PC		MV-1000AC
Code#		823-101MV		823-101AC
Test Force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	gf	10、25、50、100、200、300、500、1000
Indentation Measurement		iVicky V2.0 Measuring Software
Switch of Objectives and Indenter		Manual
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x；Measurement：40x
Eyepiece		10x Eyepiece
Dwell Time		5-60s
Measuring Range		1HV-3000HV
X-Y Anvil		Size: 100X100mm; Travel:25mm X 25mm;Resolution: 0.25um
Video Measuring System		USB Camera, 1X Camera Adapter, Micro Measuring Software iVicky V2.0
Maximum Height and Width of Specimen		Maximum Height: 70mm; Maximum Width:95mm
Power supply		AC220/50Hz; AC110V/60Hz
Dimension		530X290X490mm
Gross/Net Weight		50kg/40Kg
Execution Standard		ISO 6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has become the China's largest brinell hardness test equipment enterprise and production base. All our technical staff are rich in experience for vickers hardness testing machine .
2. Our excellent technician will always here to provide help or explanation for any problem happened to our digital rockwell hardness tester .
3. Our technology is always one step ahead than other companies for zwick roell hardness tester . Ushering in the culture of brinell machine helps Sinowon to step further. Inquiry!
