◆ XYZ three axis CNC automatic control and accurate positioning;

◆ Granite base and column, good stability;

◆ Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;

◆ Imported 0.5 um high precision linear scale to ensure the positioning accuracy and measurement accuracy of the system;

◆ High resolution color camera to meet the needs of clear observation and accurate measurement;

◆ 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;

◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control;

◆ Automatic measurement program can be set to complete batch measurement efficiently and quickly.

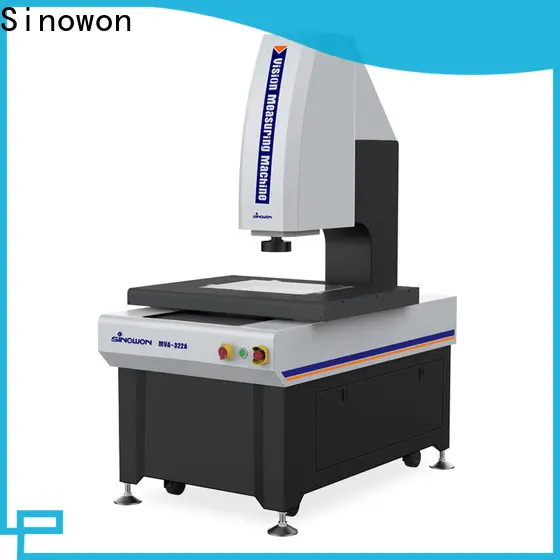

Product Name		Cantilevered   Fully Auto Vision Measuring Machine
Model		MVA-322A		MVA-432A		MVA-542A
Code#		523-360A		523-370A		523-380A
X/Y-axis Travel		300x200mm		400x300mm		500x400mm
Z-axis Travel		200mm
X/Y/Z-3 axis   Linear Scale		Imported Linear   Scale Resolution: 0.5um
Guidance Mode		Precision   linear guide，double-track   double slider guide.
Operation   Mode		Joystick   controller, Mouse operation, automatic detection program.
Accuracy*		XY-axis：≤2.0+L/200um
		Z-axis：≤5+L/200um
Repeatability		±2um
Video   System**		High definition 1/3" Color CCD Camera,
		6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor)
Field of View(mm) （D*H*V）	Magnification	0.7X	1X	2.0X	3.0X	4X	4.5X
	1/3"CCD	8.57x6.86x5.14	6.00x4.80x3.60	3.00x2.40x1.80	2.00x1.60x1.20	1.50x1.20x0.90	1.33x1.07x0.80
Illumination System	Contour	LED parallel contour illumination
	Surface	0~255 Stepless adjustable   5-ring 8-division LED surface illumination
Measuring Software		Standard: iMeasuring 4.1 Fully Auto Measuring Software
Load Capacity		25Kg
Working Environment		Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g,   <15Hz
Power Supply		220V/50Hz/10A
Dimension(W*D*H) (cm)		1132x720x1665mm		1280x840x1688mm		1257x920x1640mm
Packing Size		1290x970x1920mm		1390x1060x1940mm		1450x1170x1900
Net Weight		380Kg		450Kg		600Kg

L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.

Field of view(mm) = (diagonal*Horizontal*Vertical)

0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.

0.1um imported linear scale is optional available.

Sensor System

A（2.5D ) Optical Zoom lens

B（3D ) Zoom lens & MCP Touch Probe

C（2.5D ) Optical Zoom lens & Laser scanning Probe

D（3D ) Zoom Lens, Scanning and Touch probe

Item Code

MVA-322A

MVA-432A

MVA-542A

MVA-322B

MVA-432B

MVA-542B

MVA-322C

MVA-432C

MVA-542C

MVA-322D

MVA-432D

MVA-542D

Software

iMeasuring 4.1

iMeasuring 4.2

iMeasuring 5.0

iMeasuring 5.1

MVA Series can be customized according to customers’ application requirements. Motorized coaxial zoom lens is optional for improving 2.5D measurement efficiency; MCP probe is optional for measuring geometric dimensions, while laser sensor module is selected to perform accurate measurement of glass, transparent plastic and other materials.
