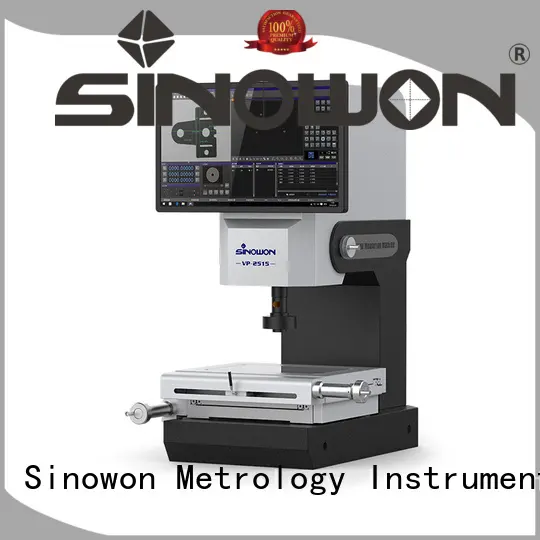

Sinowon quality optical profile projector series for thin materials
-
v s
1. The steel construction of Sinowon video optical comparator is designed and engineered by our in-house professional engineers. The production of this steel- hot dipped galvanized- is also undertaken in-house by our experienced team.
2. To meet the needs of our rapid social development, optical profile projector is considered to be the unique characteristics of our products.
3. With its abrasion resistance property, this product allows for many times of washing or a lot of people's movements.
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;
◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;
◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200mm;
◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;
◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;
◆ With powerful iMeasuring2.1 software system , to enhance the control quality;
◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;
◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption.
Specification
| Product Name | Vertical Video Projector | ||||||||
| Model | VP-2010 | VP-2515 | VP-3020 | ||||||
| Code# | 541-200 | 541-210 | 541-220 | ||||||
| Working Stage Travel | 200x100mm | 200x150mm | 300x200mm | ||||||
| Focusing Travel | 150mm | ||||||||
| Measurement Accuracy* | ≤3+L/200um | ||||||||
| Resolution | 0.0005mm | ||||||||
| Load Capacity | 10kg | ||||||||
| CCD | HD700 TVL Color CCD | ||||||||
| Zoom Objective Lens ** | HD 6.5X Detented Zoom Lens | ||||||||
| Optical Magnification:0.7X-4.5X; Video Magnification:26X~172X(21.5” LCD) | |||||||||
Field of View (mm) Diagonal*Horizontal*Vertical | Lens Magnification | 0.7X | 1X | 2.0X | 3.0X | 4X | 4.5X | ||
| 1/3”CCD | 8.57x6.86x5.14 | 6x4.8x3.6 | 3x2.4x1.8 | 2x1.6x1.2 | 1.5x1.2x0.9 | 1.33x1.07x0.8 | |||
| Illuminating System (Software Control) | Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination | ||||||||
| Contour: LED Parallel illumination | |||||||||
| LED Laser navigation illumination | |||||||||
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ | ||||||||
| Measurement Software | iMeasuring 2.1 | ||||||||
| System | Support XP, WIN7, WIN8，WIN10 32/64 Bit | ||||||||
| Power | AC110V/60Hz; 220V/50Hz,600W | ||||||||
| Dimension(L×W×H) | 1460x1120x580mm | 1725x675x620mm | 1725x675x760mm | ||||||
| Weight | 280kg | 330kg | 380kg | ||||||
