Application:

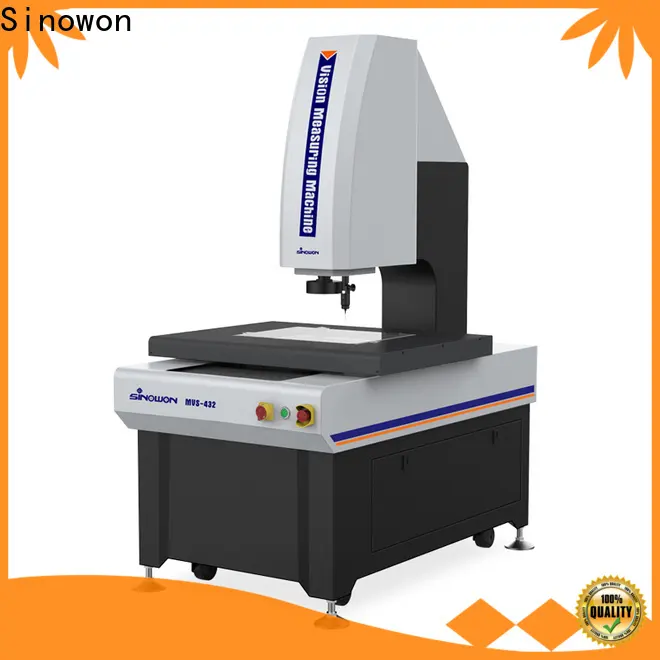

Sinowon MVS-432R is multisensor vision coordinate measuring machine, it not only can measure the linear size, such as: point, line, cycle, arc, angle, rectangular hole, but also can measure the geometrical size, such as: straightness, flatness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, symmetry, position, profile, surface In the workshop and laboratory, most of measurement job can be done by multisensor measuring machine, it is widely applied to measure the dimension of Hardware, Mold, Machining, Precision Manufacturing, Automotive Parts, Stampings, Aerospace Components, Plastic & Rubber Products, Mobile Phone Industry, PCB Boards, Electronic Components, Semiconductor Components, Flat Glass (Touch Panels & LCD Panels), Medical Devices , tools and other fields, etc.

Product Features:

²  Moving Bridge type structure, measuring workpiece is fixed;

²  Four-axis CNC fully auto close loop control, auto measurement;

²  Marble base and pillar, good stability;

²  Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

²  Imported high-resolution digital camera, to ensure clear image without distortion;

²  6.5x Electronic zoom lens, accurate doubling and one times pixel correction only needed;

²  With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

²  Equipped with imported R20 Probe to perform 3D measurement;

²  Powerful function and easy operation RationalVue Measuring Software to enhance quality control;

²  Optional Laser Sensor Module. Machines can be customized according to customers’ requirements.



Technical Specification：

Commodity		3D Multisensor Fully Auto Vision   Measuring Machine
Model		MVS-432R
Code#		523-370R
X/Y-axis Travel		400x300mm
Z-axis Travel		200mm
X/Y/Z-3 axis   Linear Scale		Glass Linear Scale Resolution: 0.5um
Guidance Mode		Precision   linear guide, double-track double slider guide
Operation   Mode		Joystick   controller, Mouse operation, automatic detection program
Accuracy*		E1xy ≤2.0+L/200(um)
		E1z ≤4+L/200(um)
Repeatability		±2um
3D probe measuring system		TELES R20 Probe 3D measuring system Ring Gauge or optional 25mm calibration ball
Vision Touch   Sensor		High definition 1/2.9” digital camera
		6.5X Electronic Zoom Lens
		Optical Magnification: 0.7X-4.5X
Field of View(mm) （D*H*V）	Magnification	0.7X	1X	2.0X	3.0X	4X	4.5X
	1/2.9"Camera	8.88x7.10x5.32	6.21x4.97X3.73	3.11x2.49x1.86	2.07x1.66x1.24	1.55x1.24x0.93	1.38x1.10x0.83
Illumination  System	Contour	LED parallel contour illumination
	Surface	0~255 Stepless   adjustable 5-ring 8-division LED surface illumination
	Coaxial	LED Parallel   Illumination
Measuring Software		RationalVue Measuring   Software
Operation System		Support WIN 10, 32/64   operating system
Working Environment		Temperature 20℃±2℃ Humidity Range<2℃/hr Humidity 30~80% Vibration<0.002g, <15Hz
Language		English, Korean, Chinese, Spanish, German, Korean etc.
Power Supply		220V/50Hz; 110V/60Hz
Load Capacity		25Kg
Dimension(W*D*H) (cm)		1280x840x1688mm
Packing Size		1500x1120x1900mm
Net Weight		450Kg
Gross Weight		675Kg
