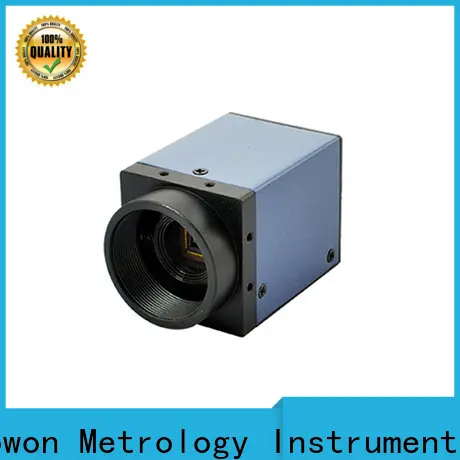

1/3” Analog Color Video Camera

Vicam6.0

Vicam6.0 is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.

Technical Specifications：

Commodity	1/3” Analog Camera of Vision Measuring Machine
Model	ViCam6.0
Video Signal System	Type E: PAL
Sensor	Diagonal 6.0mm 1/3” Exview CCD
Unit cell size	6.5um(H)X6.25um(V)
Number of pixels	approx. 470K pixels
Scanning system	2:1 interlaced
Resolution	650TVL
Video output	composite video signal: 1.0Vp-p, 75 ohms
Video process	Bio-ele image processing ele ext-Fx TM
Sensitivity	0.1Lux
S/N ratio	54dB (AGC: OFF)
ATW	OSD set: Push lock/ manual/auto(1800 °K~10500 °K)
AES	OSD set: 8-level manual/auto: 1/50s~1/10,0000s
OSD	available
Sync mode	internal lock
Lens drive	DC
Lens mount	C/CS mount
Power consumption	Approx. 1.5W; recommended: +12VDC
Operating temperature	0℃ to +40℃ (recommended)
Dimension	60.0 (L)×48.5 (W)×58.0 (H) mm
Weight	approx. 155g

1/2” Analog Color Video Camera

Vicam8.0

Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.

Technical Specification:

Commodity	1/2” Analogue Color Video Camera
Model	Vicam8.0
Signal system	Type E: PAL standard
Sensor	1/2” 8.6um(H)X8.3um(V)
Number of pixels	Approx.470K pixels
Scanning system	2:1 interlaced
Resolution	700TVL
Video output	composite video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75 ohms: C:0.3Vp-p 75 ohms
Video process	ele ext-Fx
Sensitivity	0.001Lux
S/N ratio	63dB (AGC: OFF)
ATW	OSD set: Push lock/ manual/auto(2300° K~11000° K)
Image adjustment	OSD set, Brightness, contrast ratio, and sharpness, Chroma, gain
Language	OSD set,8 English/Chinese/France/German/Portuguese/Spanish
OSD	Available
Sync mode	internal lock
Lens drive	DC
Lens mount	C/CS mount
Lightening proof	isolated 10/700us 4000V; follow IEC61000-4.5, ITU-T K20/21
Power consumption	approx. 2.4W +12V DC
Operating temperature	0℃ to ~40℃
Dimension	127.1 (L)×68.8 (W)×48.7 (H) mm
Weight	approx. 400g

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
