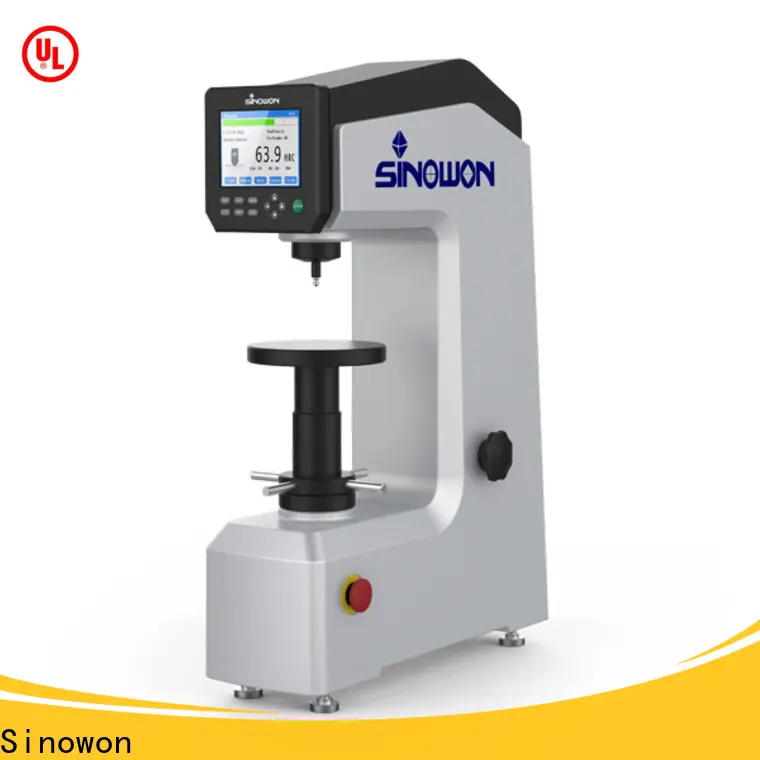

Sinowon rockwell superficial hardness manufacturer for small areas
Model:
DigiRock DS3
Code#:
811-230
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
GB/T230.2, EN-ISO 6508 , ASTM E-18
Certificate:
CE
Company Advantages
1. Sinowon mitutoyo rockwell hardness tester is manufactured under several processes. Namely, it goes through mechanical drawing (auto CAD), stamping, coating, painting, drying, polishing, testing, and assembling. It is easy to operate, with fast speed
2. One of our customers says: 'This product keeps my visitors playing the way they are meant to be safe and fun. I have gained high guest compliments from them.' It is well recognized by more than 5000 customers
3. The product has stable performance, long storage life and reliable quality. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
![Sinowon rockwell superficial hardness manufacturer for small areas 6]()
![Sinowon rockwell superficial hardness manufacturer for small areas 7]()
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a group of professional technician and a team of skillful workers for rockwell superficial hardness .
2. Enhancing the strength of producing saroj hardness tester is the persistent goal of Sinowon. Get an offer!
1. Sinowon mitutoyo rockwell hardness tester is manufactured under several processes. Namely, it goes through mechanical drawing (auto CAD), stamping, coating, painting, drying, polishing, testing, and assembling. It is easy to operate, with fast speed
2. One of our customers says: 'This product keeps my visitors playing the way they are meant to be safe and fun. I have gained high guest compliments from them.' It is well recognized by more than 5000 customers
3. The product has stable performance, long storage life and reliable quality. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
Product Feature
◆ Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
◆ Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
◆ Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
◆ Auto hardness conversion to others scales, no need to check table and improve working efficiency.
◆ Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
◆ With 2000 single testing results and 1000 group results. Reviewing results and analysis.
◆ Optional bluetooth mini printer is available.
Specification
| Product Name | Digital Superficial Rockwell Hardness Tester |
| Model | DigiRock DS3 |
| Code# | 811-230 |
| Rockwell Scales | HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Preliminary Test Force | 3Kgf(29.42N) Permitted Error：±2.0% |
| Addtional Test Fore | 147.1N(15kg)、294.2N(30kg)、441.3N(45kg) Permitted Error:±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | 5.2” Touch Screen, Resolution:640x480 |
| Resolution | 0.1HR |
| Loading Control | Auto Loading/Dwell/Unloading |
| Hardness Conversion | HRC、HV、HBS、HBW、HK、HRA、HRD、HRB |
| Conversion Standard | ASTM、DIN |
| Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
| Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
| Data Output | Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, EN-ISO6508, ASTME-18 |
Application
