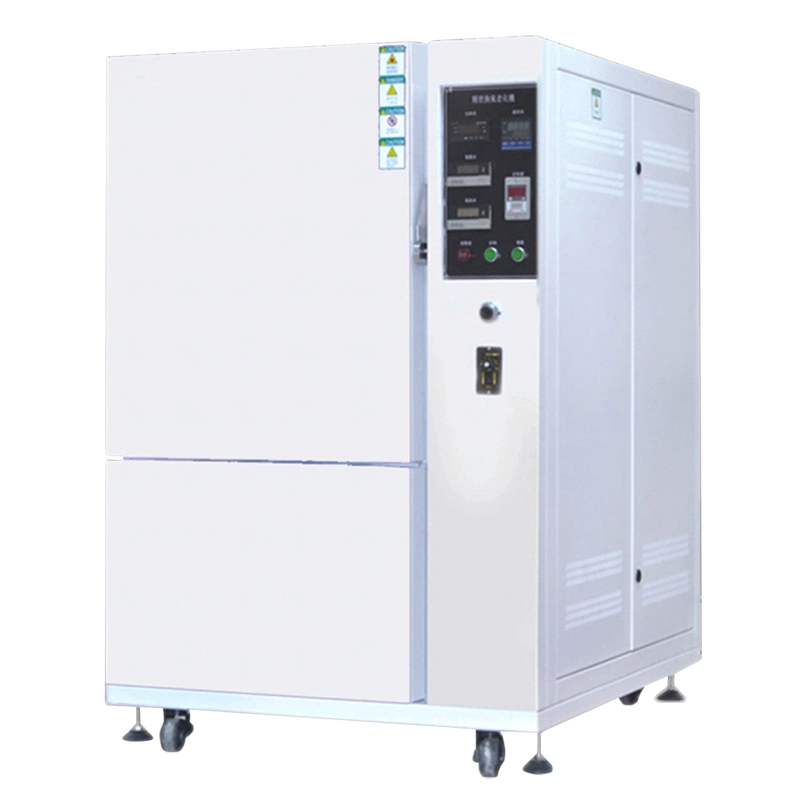

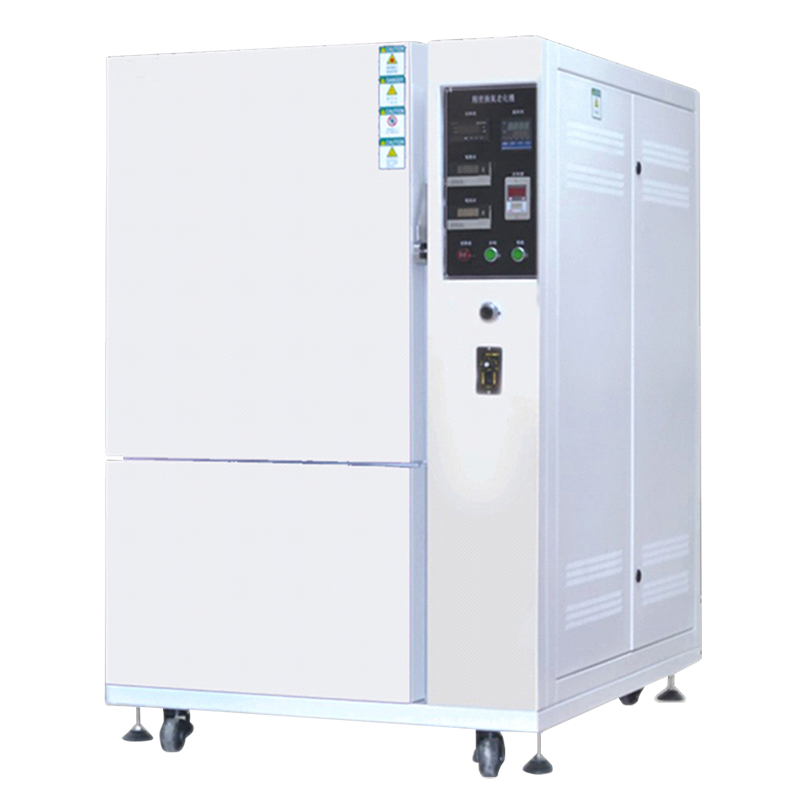

Sinowon SHQ Series Ventilation Aging Test Chamber

Model:

SHQ-454,SHQ-565

Code#:

221-661,221-671

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Sinowon SHQ Series Ventilation Aging Test Chamber 2

The ventilated aging test chamber is suitable for thermal resistance testing of electrical insulating materials, as well as for ventilated aging testing of electronic components and plasticized products.

Product Characteristic

lThe temperature controller adopts PID automatic calculation SCR current automatic adjustment control, providing precise and reliable temperature control.

lLarge-scale tempered glass inspection, with attached lighting, allowing for the observation of test conditions within the box at any time.

lThe internal turntable can be freely disassembled or placed with a sample rack, and the motor speed for hanging is 8-10rpm.

lMulti-wing centrifugal horizontal diffusion air supply circulation system, with adjustable fresh air ventilation volume.

lThe left side of the box is equipped with a 50mm diameter test hole for external testing power or signal lines.

lMultiple safety protection circuit system with fault warning.

lDigital timer with ventilation measurement function, allowing for the setting of ventilation time and frequency.

lThe whole machine is processed by CNC machine tools, with the inner box made of high-quality SUS# 304 stainless steel and the outer box made of plastic-sprayed steel plate. It is equipped with a non-reactive door handle for easy operation and beautiful and novel design.

Specification

Commodity	Ventilation Aging Test Chamber
Model	SHQ-454	SHQ-565
Code#	221-661	221-671
Interior Dimensions (WHD)mm	450450500	500600500
Exterior Dimensions (WHD)mm	11101400730	11601500780
Humidity Range	Room Temperature 10℃~200℃	Room Temperature 10℃~300℃
Humidity Uniformity	±2.0℃	±3.0℃
Temperature Fluctuation	±2.0℃
Test rack speed	8-10rpm（1~10rpm）
Ventilation Rate	10-200 hours (1-10 times/hour)
Timing Range	1~9999min
Safety Protection	Protection against leakage, short circuit, overheating, motor overheating, overcurrent, etc.
Power Supply	102W220V/60HZ（50HZ）
Accessories	2 storage racks, 1 ammeter, 1 timer
Optional Accessories	Air flow meter, touch screen temperature controller (optional)

Standards

Standards	Air Change Rate
JIS-K7212，JIS-K6723 JIS-A5756，JIS-C3004 JIS-C3005，JIS-K6301	Up 1 time/hr
ASTM-D2436，ASTM-D573	100`200 times/hr
UL-746B	100`200 times/hr
UL-1571.62.444	5`250 times/hr
ISO/DIS 4577	1 times/hr
IEC-540	8`20 times/hr
BS-6746	8`20 times/hr
BS-903	8`19 times/hr
