Sinowon single grinding and polishing equipment factory for aerospace

Model:
MC-250
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Company Advantages
1. grinding and polishing equipment from Sinowon Innovation Metrology Manufacture Limited. can be said as a upgraded version of metallographic polishing . A team of experienced talents is gathered to support the product sales
2. The product is in high demand at home and abroad thanks to its considerable economic benefits. A quality control system is implemented for the product
3. With high-level technicians support, Sinowon has developed high-performance metallographic polishing . The product is well used in many large engineering projects
4. metallographic polishing is still valuable due to its advantages as grinding and polishing equipment. The product is CE certified for the European market


Sinowon single grinding and polishing equipment factory for aerospace 9

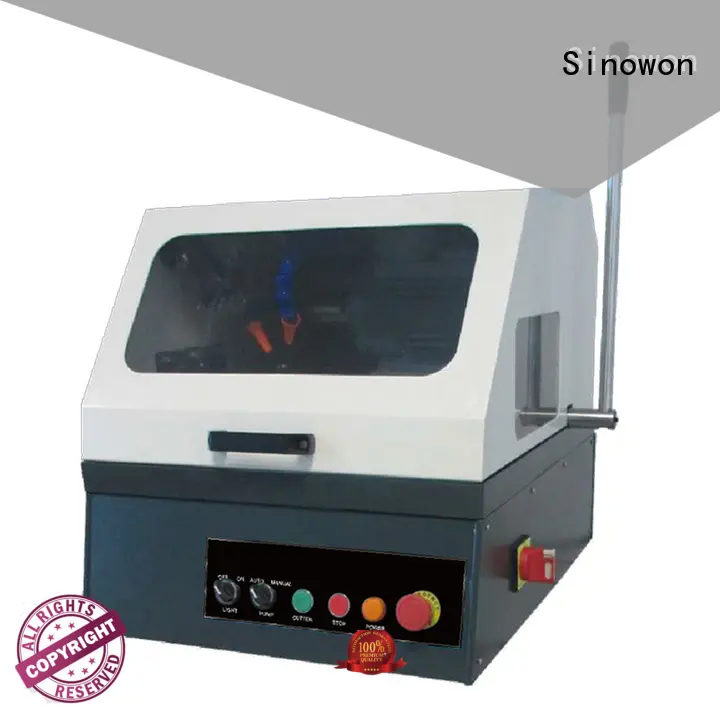

The MC-250 is a tabletop manual wheel feed abrasive cutter with robust and durable design. This is a versatile cutting machine designed for  sectioning an extremely wide range of materials, such as ferrous metals, non-ferrous metals, fasteners, foundry castings, heat treated parts, rocks and ceramics, etc. It has large workspace and various clamping vises options. Ideal for material test laboratory, as well as for small industrial or production applications.

Product Feature


 Aluminum casting, powder coated

 Variable speed motor (option)

 T-slot Table made of stainless and aluminum alloy

 Fast Cam Locking Vises, made of 304 stainless steel

 Chamber illumination with LED

 Electronic braking system for faster stopping the blade(option)

 Side port window for longer samples

 Mobile plastic recirculation coolant tank

 Large workspace



Specification



Product NameManual Cutting Machine
ModelMC-250
Manual/MotorManual/Motor
Cooling MethodWater-cooling
Cutting Disk250x32x1.5mm
Revolving Speed, rpm2850rpm
Max cutting ability, mm80mm
Travel200mm
Working stage size316x260mm
Main Machine810x750x620mm
Power2.2KW
Power SupplyThree phase380V, single phase220V


Option Accessories



Sinowon single grinding and polishing equipment factory for aerospace 10

LED Lamp

Sinowon single grinding and polishing equipment factory for aerospace 11

Large Workong Space

Sinowon single grinding and polishing equipment factory for aerospace 12

Schneider Switch(Optional)


Sinowon single grinding and polishing equipment factory for aerospace 13

Vertical Clamp

Sinowon single grinding and polishing equipment factory for aerospace 14

304 SS Toggle Clamp

Sinowon single grinding and polishing equipment factory for aerospace 15

ABB Motor(Optional)
