A professional manufacturer of measuring & testing equipment.

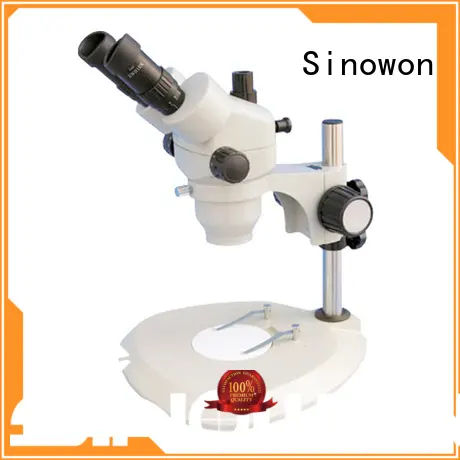

Sinowon stereo stereo zoom microscope personalized for precision industry 1
Sinowon stereo stereo zoom microscope personalized for precision industry 2
Sinowon stereo stereo zoom microscope personalized for precision industry 1
Sinowon stereo stereo zoom microscope personalized for precision industry 2

Sinowon stereo stereo zoom microscope personalized for precision industry

Model:
A5
Code#:
411-222
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Enterprise Strength
  • Sinowon receives converted recognition from customers depending on good product quality and a comprehensive service system.
Company Advantages
1. Sinowon Innovation Metrology Manufacture Limited. mainly assemble stereo zoom microscope whose materials including digital stereo microscope .
2. The product features high precision in sizes. It is processed by advanced CNC machines, which is less likely to occur errors.
3. Comprehensive sales network helps Sinowon win more customers.
4. Each stereo zoom microscope has passed comprehensive performance tests before leaving the factory to ensure product quality.

Sinowon stereo stereo zoom microscope personalized for precision industry 3

 With Zoom A5(binocular) and Zoom A5T(trinocular);

 Brand-new optical design, the best reproduction and true color image;

 Kinds of stands and attachments are available;

 Applied to modern biology research, semiconductor and the other science and technology industry field to meet high precision requirement.


Specification



ModelBinocular Zoom A5
Code#411-222
Objective0.7x~4.5x Zoom Objective, Zoom Ration 6.4x
Eyepiece

High eye-point and wide-field eyepiece WF10X/20mm

Optional WF15X/15mm,WF20X/10mm and object micrometer is available

Magnification7x~45x,it can extend to 3.5x~180x
Zoom DriverHorizontal Axial Driver Control Knobs
Working Distance100mm(effective distance),it can extend to 30mm~165mm
Microscope Head Binocular Observe Head with 45°incline and 360°rotatable
Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter
Microscope Holder

Focus adjustment range 50mm,focusing knobs elasticity adjustable

Drawtube diameter 76mm

Microscope StandPillar diameter 32mm and high 240mm
Black & white working board diameter 95mm
Auxiliary Objective0.5X/165mm,1.5X/45mm and 2X/30mm optional


Optical Specification:


EyepieceMain BodyAuxiliary Objective
0.5X1X1.5X2X
0.7x~4.5x(#416-312)(#416-322)(#416-332)(#416-342)
10XTotal Magnification3.5x~22.5x7x~45x10.5x~67.5x14x~90x
Field of view57.1~8.9mm28.6~4.4mm19~3mm14.3~2.2mm
15XTotal Magnification5.25x~33.75x10.5x~67.5x15.75x~101.25x21x~135x
Field of view43.8~ 6.7mm21.1~3.3mm14.3~2.2mm10.7~1.7mm
20XTotal Magnification7x~45x14x~90x21x~135x28x~180x
Field of view28.6~ 4.4mm14.3~2.2mm9.5~1.5mm7.1~1.1mm
Working Distance(mm)1651004530





Company Features
1. So far, Sinowon Innovation Metrology Manufacture Limited. has achieved great accomplishments in the field of digital stereo microscope . We have attracted more customers thanks to our high quality products.
2. All our stereo zoom microscope are produced to comply with the latest fashion trend.
3. Meanwhile, outstanding corporate culture has made Sinowon to be with excellent service and better cohesion. Ask! Sinowon is an ambitious company that strives to be a leading enterprise in stereoscopic microscope industry. Ask!
