A professional manufacturer of measuring & testing equipment.

Sinowon tensile strength machine directly sale for precision industry 1
Sinowon tensile strength machine directly sale for precision industry 2
Sinowon tensile strength machine directly sale for precision industry 3
Sinowon tensile strength machine directly sale for precision industry 1
Sinowon tensile strength machine directly sale for precision industry 2
Sinowon tensile strength machine directly sale for precision industry 3

Sinowon tensile strength machine directly sale for precision industry

Model:
Vexus MT20-800
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228
Certificate:
CE
Inquiry
Company Advantages
1. Environmentally friendly materials are used in production of Sinowon plastic testing machine . The product is well used in many large engineering projects
2. Customers love this product. It allows them to use it to show a wide variety of media such as videos, images, and documents, among others. It is aimed at more than 60 countries and regions for exports
3. The product is stain and liquid resistant. It is coated or polished with a layer that goes through special dipping treatment, which enables it to resist splodge splotch, acid and alkaline. More than 10,000 pcs have been delivered and installed
4. The product is hygienic. During the production process, advanced technology for odor and bacteria management has been used to prevent mold and smell. A quality control system is implemented for the product

Sinowon tensile strength machine directly sale for precision industry 4

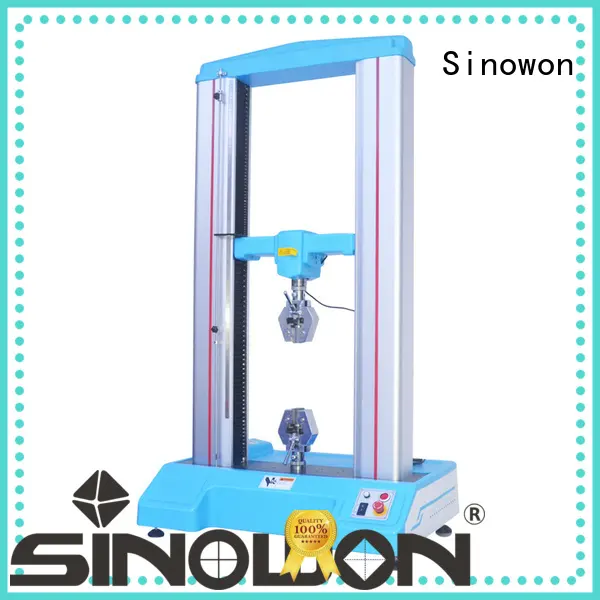

Vexus MT20 series of material testing machine is designed in double-column with maximum testing force 20KN, it is able to make the material testing about tensile, compression, bending, shearing, bonding strength, peeling, tearing, etc, it is applied to test the material such as rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.

It is a stable and affordable material testing instruments for the incoming quality control, physical test, mechanics research, material development, etc.



Machine Structure


◆ The material testing is driven by AC servo motor stably;

 The linear motion is ensured by double precision ball screw rod smoothly;

 The columns are protected by aluminum shell with sandblasted surface perfectly;

 The base cover is made of high-grade ABS plastic with spray coating, which is durable and beautiful;

 The fine adjustment switch is standard delivery for up and down stroke;

 The different functional grips can be replaced by the quick-release-clamp easily.



Specification

Product NameUniversal Material Testing Machine
Model Vexus MT20-700Vexus MT20-1000Vexus MT20-1500
Test Stroke700mm1000mm 1500mm
Capacity

10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN(can select double capacities preparation)

DisplayComputer display mode
Force Resolution1/500,000
Force Accuracy≤±0.3%
Stroke Resolution0.005mm
Control ModeAll computerized operation mode
Test WidthØ420mm
Test Speed0.1~1000mm/min, can set by computer, with up & down fast adjustment button of grips
Force Unit SwitchKgf, N, Ibf, g, ton, Mpa
Stop ModeOverload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension72×52×130cm(W×D×H)
Machine DriveServo motor drive, synchronous wheel and precision ball screw drive
Power400W
Machine WeightApprox 115kg
Power Supply220V 50/60HZ 10A
Standard Device1 set of grips, computer software, USB computer connection wire
OptionalComputer and Grips



Sinowon tensile strength machine directly sale for precision industry 5

MS100 is professional software for material testing in windows system, it is able to conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.



Measure Software Features


◆ MS100 Test & Control System is designed to work PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers, which can make the testing of tensile, compression, bending, shearing, tearing and peeling test, etc.

◆ MS100 has the functions of data collection, save, processing and printing test result, it can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, flexible data processing, MS-ACCESS database support, and so on.


Sinowon tensile strength machine directly sale for precision industry 6












Company Features
1. As a leading provider of tensile strength machine , Sinowon Innovation Metrology Manufacture Limited. is committed to the R&D and production.
2. Sinowon Innovation Metrology Manufacture Limited. has a very refined apparatus.
3. One of our mission is to cut down the environmental negative impact of our production way. We will seek feasible ways that can cut down carbon footprint to reasonably handle waste discharges and disposal.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
