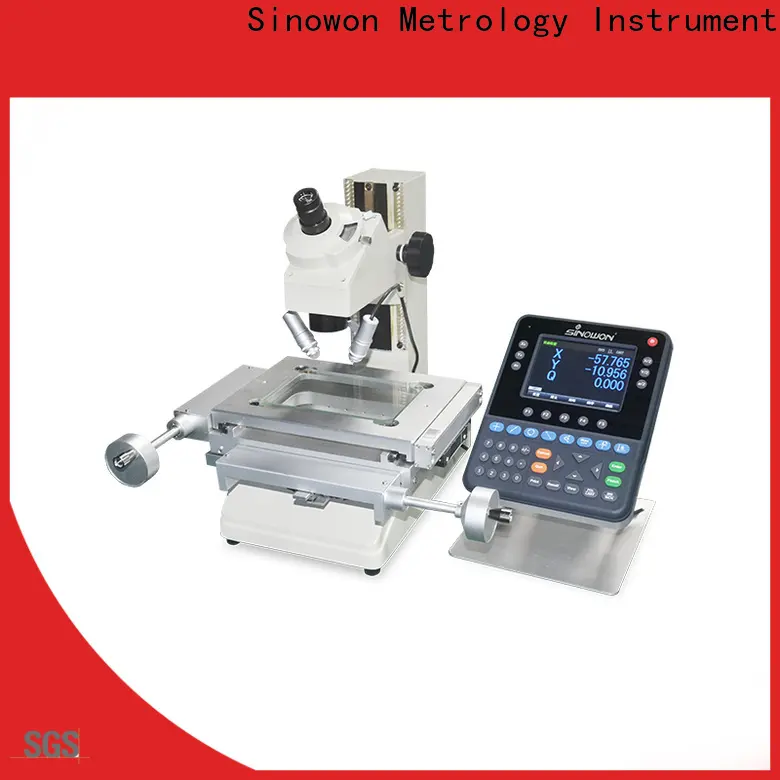

Sinowon toolmakers tools factory for measuring
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. toolmaker scope promotes the sales of toolmakers tools . The product is CE certified for the European market
2. This product is widely used in the global market due to its high economic return. It is up to both domestic and international standards
3. The product has the advantage of high accuracy. Its self-diagnostic feature makes sure that its operation is accurate and correct. The product is excellent in dust prevention
4. The product has excellent hardness. It has gone through final heat treatment process which aims to improve general mechanical performance. It is easy to operate, with fast speed
5. It is smooth and soft. During the production process, the raising process is carried out to treat the surface of the fabric with sharp teeth, thereby lifting the surface fibers and imparting hairiness and softness. It is supported by multiple languages say English, Turkish, and German
![Sinowon toolmakers tools factory for measuring 8]()
![Sinowon toolmakers tools factory for measuring 9]()
![Sinowon toolmakers tools factory for measuring 10]()
![Sinowon toolmakers tools factory for measuring 11]()
Company Features
1. We have an excellent design team. It is composed of highly creative individuals who are savvy about this industry. They can always create sought-after products.
2. Our commitment to quality underscores everything we do. We work tirelessly to ensure that we are listening to, meeting, and exceeding their expectations.
1. toolmaker scope promotes the sales of toolmakers tools . The product is CE certified for the European market
2. This product is widely used in the global market due to its high economic return. It is up to both domestic and international standards
3. The product has the advantage of high accuracy. Its self-diagnostic feature makes sure that its operation is accurate and correct. The product is excellent in dust prevention
4. The product has excellent hardness. It has gone through final heat treatment process which aims to improve general mechanical performance. It is easy to operate, with fast speed
5. It is smooth and soft. During the production process, the raising process is carried out to treat the surface of the fabric with sharp teeth, thereby lifting the surface fibers and imparting hairiness and softness. It is supported by multiple languages say English, Turkish, and German
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature
◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;
◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |
| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |
| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |
| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |
| Surface Illumination | Ring LED illumination brightness adjustable |
| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
