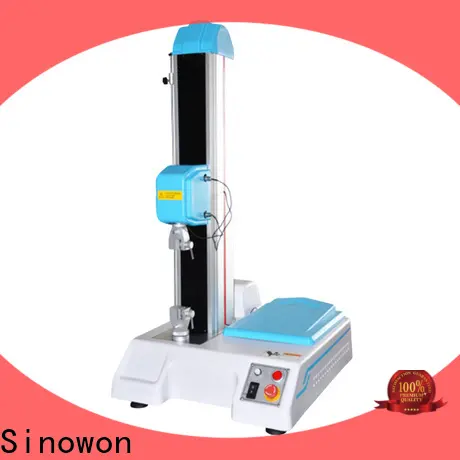

Sinowon universal testing machine uses series for precision industry

Company Advantages
1. The design of Sinowon tensile test using universal testing machine covers many factors. They mainly include statics and dynamics effect, parts tolerances and deformation, size stability, etc. It is supported by multiple languages say English, Turkish, and German
2. It is especially suitable for buildings which are close to the roads or streets. It will provide a quiet environment and a sense of privacy for people. The quality is reliable and the service life is long
3. The quality of this product is guaranteed to withstand a variety of rigorous tests. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
4. The quality of this product is guaranteed because it has passed international certification such as ISO certification. A quality control system is implemented for the product
5. Effective QC system is carried out through the production of the product to ensure the consistent quality. More than 10,000 pcs have been delivered and installed

◆ AC servo motor drive, precision ball screw drive.

◆Screw shield using aluminum extrusion, surface blasting, anode satin handle, exquisite.

◆Shell selection of advanced electrostatic spray treatment, durable.

◆Vertical stroke trim switch.

◆Quick release connectors, you can easily switch to a different function fixtures.

◆Machine protection: over-travel, over capacity protection, emergency brake switch.

◆ Powerful data analysis and statistical curves graphical analysis aids, with zoom, pan, crosshairs, and other functions;

◆ Historical test data can be transferred to the graphics displayed simultaneously comparative analysis done;

◆ Up to 7 interval setting, 40 manual taking points, 120 automatic pick point function. With the maximum, minimum, average, to the level of the average, median, standard deviation, population standard deviation, CPK values and other statistics;

◆ Test curve shows: during the test in real time and can be a show of force at the same time - displacement, force - time, displacement - time, stress - strain curve, can easily switch to the screen to see the curve;

◆ Custom test methods: with the speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step control can be nested loop. set automatic return, automatic judgment fracture, auto-zero function;

◆ Positive and negative force sensor can be switched.

Product Name	High-Precision Material Testing Machine
Model	ST-10	ST-50	ST-200	ST-500
Code #	751-110	751-120	751-130	751-140
Test Stroke	450 mm	700mm	1000mm	1300mm
Machine Dimension(W×D×H)	520×590×1061mm	520×590×1325mm	520×590×1530mm	520×590×1880mm
Machine Weight	45KG	50kg	55kg	70kg
Force Capacity	10N、20N、50N、100N、200N、500N、1KN、2KN、5KN
Display	Computer display mode
Force Resolution	1/500,000
Force Accuracy	≤±0.1%
Stroke Accuracy	≤±0.1%
Test Width	Ø140mm
Test Speed	0.01~500 mm/min(Customizable)
Acquisition Rate	2000 times / S
Force Switch	N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long)
Length Unit	mm、cm、Inch、m、km、um
Stress Unit	Pa、Kpa、Mpa、Gpa、KN/㎡、N/㎡
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Drive	Servo motor drive
Power	400W
Power Supply	220V 50/60HZ 10A
Standard Device	A pair of grip SG-01, computer software, USB computer connection cable
Optional	Personal computer, grips

◆ MS100 Test & Control System is designed to work PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers, which can make the testing of tensile, compression, bending, shearing, tearing and peeling test, etc.

◆ MS100 has the functions of data collection, save, processing and printing test result, it can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, flexible data processing, MS-ACCESS database support, and so on.

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a production company with many years of experience in the Chinese and foreign markets. We focus on the development and manufacturing of universal testing machine uses .
2. Sinowon Innovation Metrology Manufacture Limited. has established its R&D center at abroad, and invited a number of foreign experts as technical advisers.
3. Sinowon values the work that can bring benefits to customers. Contact!
