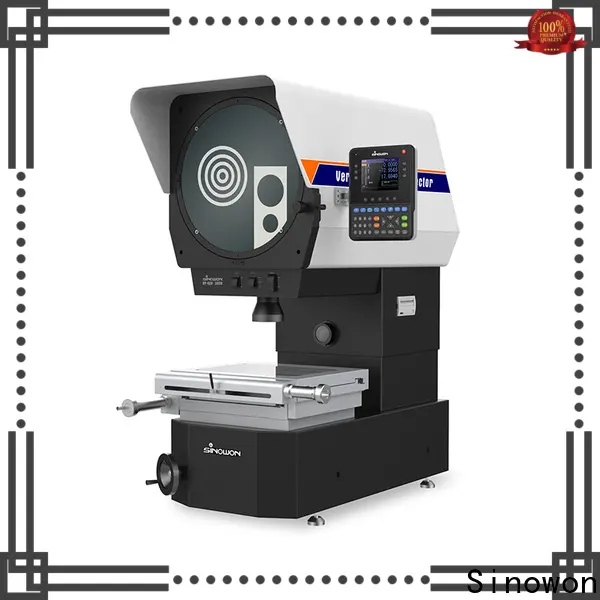

Sinowon vertical optical profile projector personalized for measuring
Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Sinowon optical measurement systems has to go through a series of treating procedures of parts ranging from part selecting, cleaning, polishing, and other surface treating methods. All these procedures are separately inspected by different QC teams. Its quality and accuracy are improved every year
2. With so many advantages the product is highly appreciated among our customers and will have a wider market application in the future. A team of experienced talents is gathered to support the product sales
3. This healthy and environmentally friendly fabric does not make sensitive skin itchy, uncomfortable or even unbearable. A quality control system is implemented for the product
4. One of the conveniences is that this product is somewhat stain resistant and can be machine washed to properly launder. The product is designed by professional designers to be user-friendly
5. This product works well under harsh conditions. It can be placed in demanding work environments, such as extreme changes in ambient temperature and humidity. The product is verified by ISO9001:2015 to be quality ensured
Company Features
1. Our business is growing owing to our highly dedicated project management team. Their years of expertise ensure that our products can be delivered to our customers at the right time and right manner.
2. We are an integrity-based company. This means we steadfastly prohibit any illegal behavior. Under this value, we do not make a material misrepresentation of facts concerning a good or service.
1. Sinowon optical measurement systems has to go through a series of treating procedures of parts ranging from part selecting, cleaning, polishing, and other surface treating methods. All these procedures are separately inspected by different QC teams. Its quality and accuracy are improved every year
2. With so many advantages the product is highly appreciated among our customers and will have a wider market application in the future. A team of experienced talents is gathered to support the product sales
3. This healthy and environmentally friendly fabric does not make sensitive skin itchy, uncomfortable or even unbearable. A quality control system is implemented for the product
4. One of the conveniences is that this product is somewhat stain resistant and can be machine washed to properly launder. The product is designed by professional designers to be user-friendly
5. This product works well under harsh conditions. It can be placed in demanding work environments, such as extreme changes in ambient temperature and humidity. The product is verified by ISO9001:2015 to be quality ensured
Product Feature
◆ Ø400mm optical projection screen;
◆ Projector body lifting focus system;
◆ Stage can bear 30Kg Large load capacity;
◆ Telecentric Cold LED lightsoruce;
◆ High powerful and colorful DRO DP400;
◆ Optional 5x optical objective is available;
Specification
| Product Name | Ø400mm Digital Vertical Profile Projector |
| Reverse Image | VP420-3020(#511-450) |
| Obverse Image | VP420-3020Z(#511-430Z) |
| Metal Stage Size | 458x358mm |
| Glass Stage Size | 356x248mm |
| Stage Travel | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm |
| Focusing | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Load Weight | 30Kg |
| Screen | Dia:φ412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout |
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,150W |
| Gross/Net Weight | 280/230kg |
Objective lens:
| Magnification | VP400-5X | VP400-10X | VP400-20X | VP400-50X |
| Code # | 511-100 | 511-150 | 511-160 | 511-170 |
| Field of View | φ80mm | Φ40mm | Φ20mm | Φ8mm |
| Working Distance | 65mm | 80mm | 67.5mm | 51.4mm |
