Sinowon vicker hardness tester manufacturer for measuring

Company Advantages
1. Practical design: Sinowon vickers hardness test definition is designed to provide a useful way for users to write and sign. With its small, compact design, it is for easy transport and efficient use of counter space.
2. The product will never be out of shape. Its heavy-duty components and parts are perfectly designed to withstand extreme industrial conditions.
3. With the use of this product, the product can replace workers to finish harmful or dangerous work tasks, allowing them to enjoy a safe working environment.
4. Thanks to its easy operation and maintenance during its service life, this product can greatly help reduce operation costs.

◆ Auto-stage, Auto-focus, Auto-measurement and Vickers hardness testing system;

◆ Loading-force: Precise dead weights ensures the loading force system reliably and precisely;

◆ Optical-path: 160mm High-resolution optical microscopy path makes image of indention sharply and excellent;

◆ Auto-Turret: the switch position of HV indenters and 10x/20X/40x/60x objectives is repeatable and accurately;

◆ Auto-stage: it is driven by precise step motor with large travel size 100x100mm and heavy load ability ;

◆ Auto-Focus: Apply high resolution optic system and auto focus technology, 3A software can realize auto focus and auto hardness evaluation if the indention size is larger than 8um ;

◆ Auto-Measurement: automatic hardness testing and measurement software：3A can control hardness tester and data communication, includes the switch of 10x, 20x, 40x, 60x objectives and Vickers indenter, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate CHD depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.

Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

Micro Vickers hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

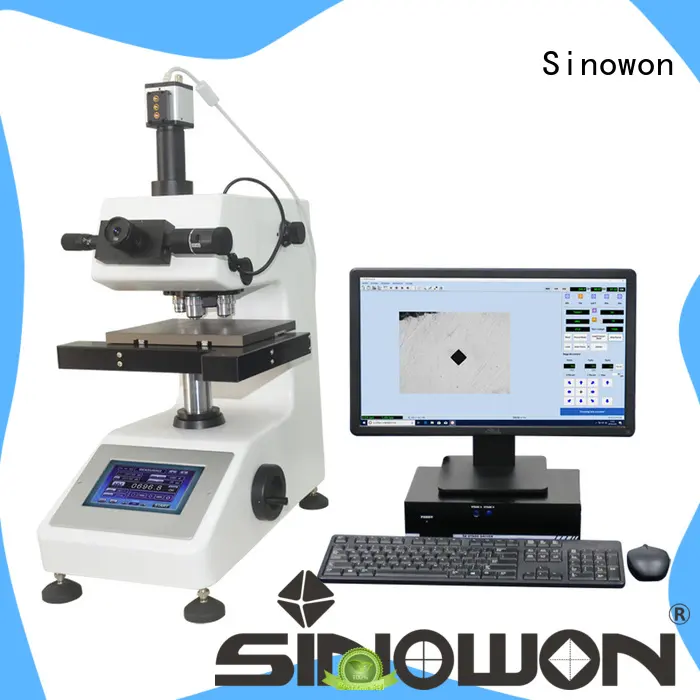

Commodity		Automatic Twin Micro Vickers/Knoop Hardness Tester
Model		AutoVicky ZHV-1000F
Code#		823-150F
Focus-Mode		Twin Auto-focus/Manual-focus
Load-System		High-precision-weight
Test Load	gf	10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000
	mN	98.07/ 245.2/ 490.3/ 980.7/ 1961/ 2942/ 4903/ 9807
Loading-Mode		Automatic loading, dwell and unloading
Dwell Time		5 ~ 99 s can be adjustable
Turret System		Auto-Turret
Dual Optical Microscopy System		High-resolution Optical Microscopy Path 10x digital measuring eyepiece 20x, 40x, 60x objective for Vickers measurement 0.5x C-mount with camera for dual vision   measurement
Magnification		Optical observation magnification : 100x ( 10x   Objective and 10x Eyepiece )
		Optical measurement magnification :200x, 400x and   600x ( 20x, 40x and 60x Objective and 10x Eyepiece )
		Digital observation magnification: 350x
		Digital measurement magnification: 700x, 1400x and   2100x
Light Source		LED parallel Illuminator
Digital Image System		0.5x C-adapter and 1.3Mpixel CMOS camera
Max. Specimen Height		90mm
Max. Specimen Depth		110mm
Hardness Scale		Switch between HV and HK
Auto-Stage	Type	Motorized
	Dimensions	200 × 180 mm
	X-Y Travel	100 × 100 mm
	Motorized	Step motor
	Resolution	0.5um
Driving Controller		VickyControl2000
Hardness Testing Software		3A: Auto-stage; Auto-focus; Auto-measurement
PC system		DELL OptiPlex3046MT
LCD monitor		21.5” Dell LCD Monitor
Executive Standard		ASTM E-92, ISO 6507, GB/T4340
Dimensions		W190 × D 430 × H 520 mm
Net. Weight		80Kg
Power Supply		AC 220V/50Hz or 110V/60 Hz

Company Features
1. Sinowon has been devoted to the production of vicker hardness tester for years.
2. In the vickers microhardness production process, we use advanced manufacturing processes.
3. Customers' feedback and suggestions on vickers hardness test definition are highly appraised. Ask online! Sinowon Innovation Metrology Manufacture Limited. strives to win the leading market in the industry. Ask online! Sinowon Innovation Metrology Manufacture Limited. has always been pursuing excellence and professionalism in the field of micro vickers hardness tester . Ask online! Sinowon now always holds the firm idea that customer satisfaction is in the first place. Ask online!
