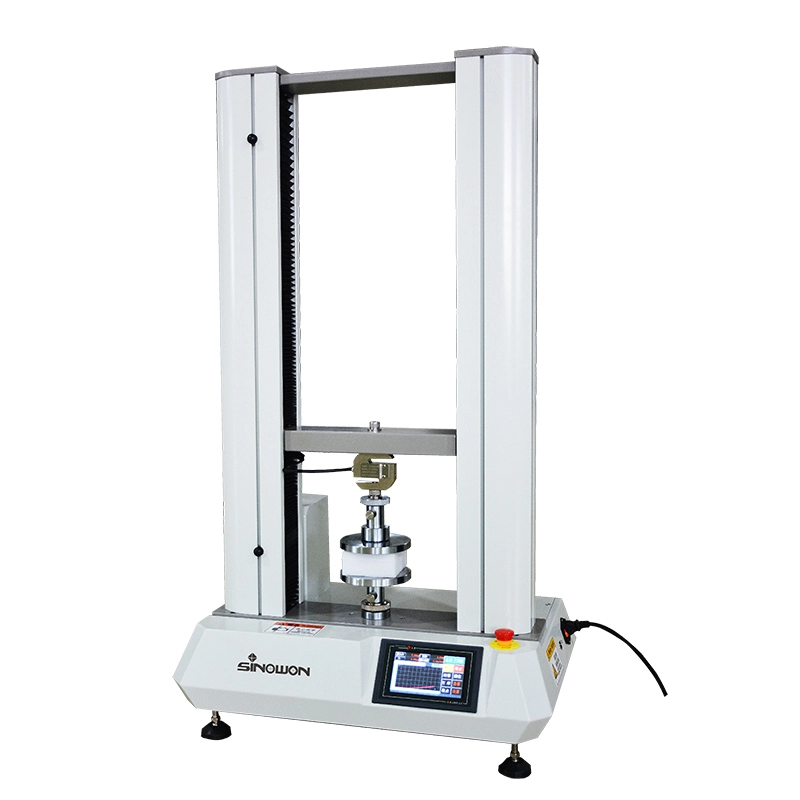

Small Pull Pressure Testing Machine ST-1162 1

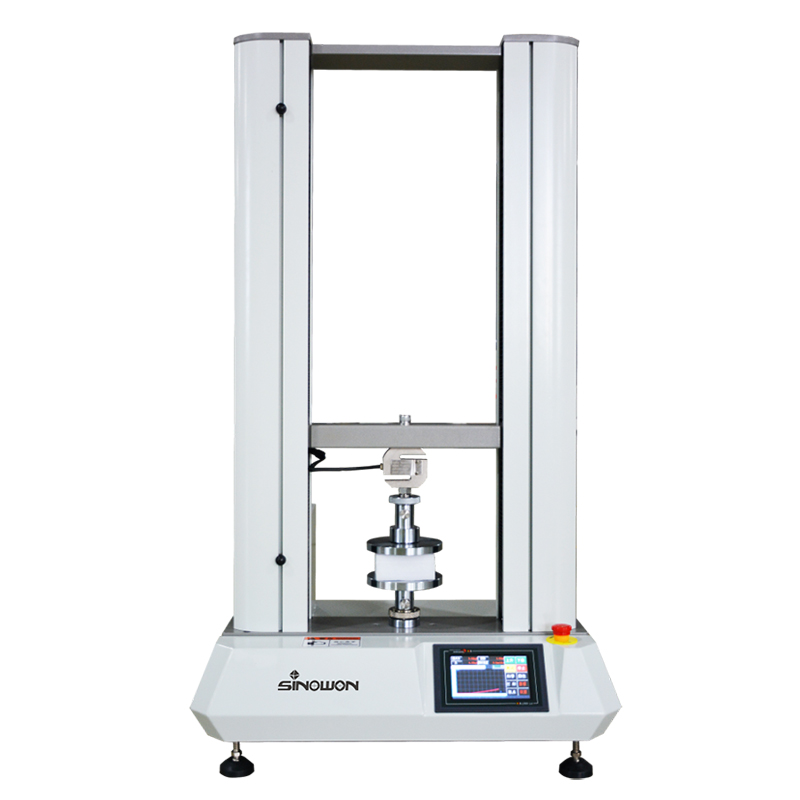

Small Pull Pressure Testing Machine ST-1162 2

Small Pull Pressure Testing Machine ST-1162 3

Small Pull Pressure Testing Machine ST-1162

Model:

ST-1162

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Small Pull Pressure Testing Machine ST-1162 4

ST-1162 is the company's latest development of a small pressure test machine, mainly suitable for hardware, rubber plastic, paper, color printing packaging, adhesive tape, bags, textile, medicine, daily chemical, food, wire electronics and other industries. Can do a variety of materials, semi-finished products and finished products of pulling, pressing, bending, folding, shear, tear, stripping and other forms of test.

Specification

Model	ST-1162	ST-1162B
Capacity selection	2,5,10,20,50,100,200,500kg of either option
Indicator	Power and extension display
Accuracy of measuring force	Better than ± 1.0%
Detective power resolution	1/10，000
Effective force measurement range	1~100%F.S
Deformation value accuracy	Better than ± 1.0%
Test speed range	1~500mm / min, for any set
Test maximum trip	Maximum of 700mm, without fixture
Effective test space	Left and right, 300mm, front and back
Power unit switch	k gf，gf ，N，kN，Ibf
Stress unit switching	MPa，kPa，kgf/cm2，Ibf/in2
Deformation unit switching	mm，cm，in
Downtime method	Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing
Take some way	Functions of manually taking points and preset taking points (20 points) during the test
Computer expansion	Have
Standard layout	1 standard fixture, 1 equipment power cable, 1 operation manual, 1 product certificate, 1 product warranty card	1 payment of standard fixture, 1 set of software and data cable, 1 equipment power cable, 1 copy of operation manual, 1 product certificate, 1 product warranty card
Machine size	Approx. 6340110cm (WDH)
Machine weight	About 55kg
Motive power	Stepper motor
Source	1 PH, AC220V, 50 / 60Hz, 10A, or specified

Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.

Software：

Small Pull Pressure Testing Machine ST-1162 5

Software Introduction
