stable 3 axis digital readout factory price for nonferrous metals

Model:
DP400
Code#:
510-340
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon rotary encoder digital readout is of guaranteed quality. Its production includes the following inspection processes to ensure the quality: material inspection processes, lens Inspection, frame inspection, and assembled eyewear inspection. The product is excellent in dust prevention
2. The product has always found use in various different fields. It can be customized according to customers' needs
3. The product has fine workmanship. Its details have undergone additional steps of fine processing of trimming the edges. It is supported by multiple languages say English, Turkish, and German
4. The product is highly hypoallergenic. Its materials are specially treated to be free of bacteria and fungi when is processed. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
5. This product has the advantage of excellent colorfastness. It highly resists fading when exposed to extreme conditions such as frequent washing and strong sunlight. Innovation is always made to update the product


stable 3 axis digital readout factory price for nonferrous metals 7



Product Feature

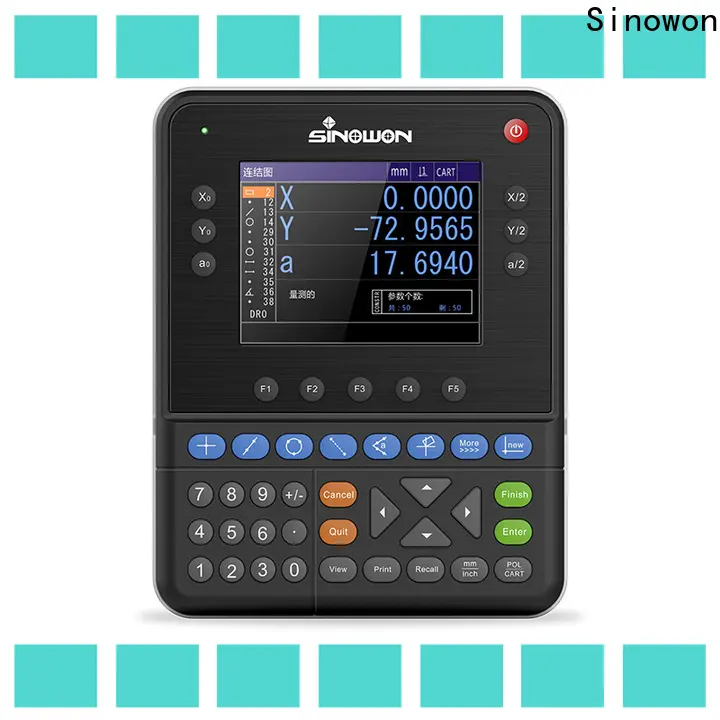

5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;

Save 100 permanent image elements, can set and save current date;

Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;

Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;

Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:

Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;

With polar and coordinate system, and can display millimeter and inch, and can shift easily;

With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;

Support multiple language:Chinese, English and other language;


Technical Specification



ModelDP400(#510-340)
LanguageSimple Chinese, Complicated Chinese, Portuguese, German and English, etc.
LCD Screen Size115mm×85mm
LCD Screen Resolution640*480
Digital Display Range8Digits(With Decimal Point)
Display Axis3-axis (X,Y,Z/Q)
Z/Q Display ModelLength or Angle
Angle Display ModelDegree, Minutes and Second or Degree
Linear Scale SignalTTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA
Linear Scale Resolution0.1um,0.2um,0.5um, 1um,2um,5um
Baud Rate4800,9600,14400,19200,38400,57600
Data Output PortRS232,DB-9 Parent interface
Operation KeyboardSealed Silicone touch-type keyboard
Expansion portFoot Switch, Printer, Optical Edge Finder, etc
Input Power SupplyAC90V-240V,15W
Operation EnvironmentWorking Temperature: 0 ℃~40 ℃;Storage Temperature:-10 ℃~60℃;Relative Humidity:<90%RH


Product Details



stable 3 axis digital readout factory price for nonferrous metals 8
stable 3 axis digital readout factory price for nonferrous metals 9
stable 3 axis digital readout factory price for nonferrous metals 10
stable 3 axis digital readout factory price for nonferrous metals 11
