A professional manufacturer of measuring & testing equipment.

stable digital readout suppliers personalized for nonferrous metals 1
stable digital readout suppliers personalized for nonferrous metals 2
stable digital readout suppliers personalized for nonferrous metals 3
stable digital readout suppliers personalized for nonferrous metals 4
stable digital readout suppliers personalized for nonferrous metals 5
stable digital readout suppliers personalized for nonferrous metals 6
stable digital readout suppliers personalized for nonferrous metals 1
stable digital readout suppliers personalized for nonferrous metals 2
stable digital readout suppliers personalized for nonferrous metals 3
stable digital readout suppliers personalized for nonferrous metals 4
stable digital readout suppliers personalized for nonferrous metals 5
stable digital readout suppliers personalized for nonferrous metals 6

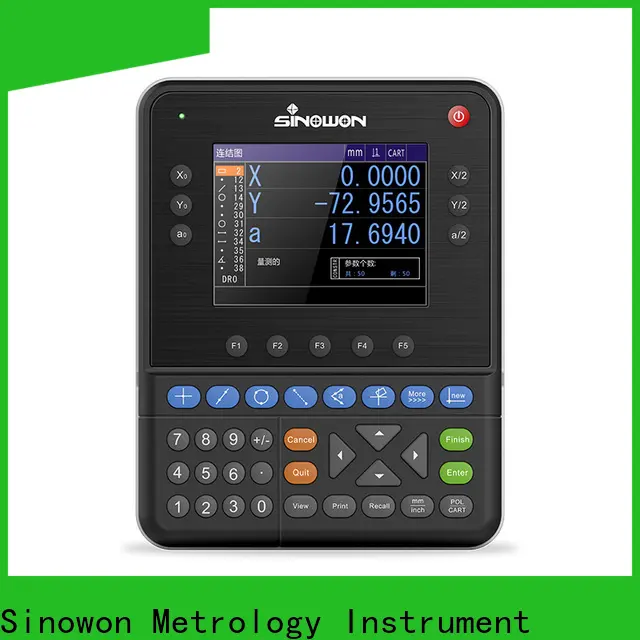

stable digital readout suppliers personalized for nonferrous metals

Model:
DP400
Code#:
510-340
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Company Advantages
1. The raw materials of Sinowon multifunction digital read out is purchased by a professional team. It is up to both domestic and international standards
2. This product has applications in a wide range of fields. It is well recognized by more than 5000 customers
3. We can guarantee quality for our digital readout suppliers . It has been marketed successfully for 12 years, thanks to the excellence in quality and technology


stable digital readout suppliers personalized for nonferrous metals 7



Product Feature


5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;

Save 100 permanent image elements, can set and save current date;

Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;

Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;

Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:

Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;

With polar and coordinate system, and can display millimeter and inch, and can shift easily;

With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;

Support multiple language:Chinese, English and other language;


Technical Specification



ModelDP400(#510-340)
LanguageSimple Chinese, Complicated Chinese, Portuguese, German and English, etc.
LCD Screen Size115mm×85mm
LCD Screen Resolution640*480
Digital Display Range8Digits(With Decimal Point)
Display Axis3-axis (X,Y,Z/Q)
Z/Q Display ModelLength or Angle
Angle Display ModelDegree, Minutes and Second or Degree
Linear Scale SignalTTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA
Linear Scale Resolution0.1um,0.2um,0.5um, 1um,2um,5um
Baud Rate4800,9600,14400,19200,38400,57600
Data Output PortRS232,DB-9 Parent interface
Operation KeyboardSealed Silicone touch-type keyboard
Expansion portFoot Switch, Printer, Optical Edge Finder, etc
Input Power SupplyAC90V-240V,15W
Operation EnvironmentWorking Temperature: 0 ℃~40 ℃;Storage Temperature:-10 ℃~60℃;Relative Humidity:<90%RH


Product Details



stable digital readout suppliers personalized for nonferrous metals 8
stable digital readout suppliers personalized for nonferrous metals 9
stable digital readout suppliers personalized for nonferrous metals 10
stable digital readout suppliers personalized for nonferrous metals 11




Company Features
1. With strong economic strength, Sinowon always offer the most excellent digital readout suppliers .
2. Whenever there is any problems for our acurite readout, you can feel free to ask our professional technician for help.
3. Our firm bears societal responsibilities. We are always focusing on boosting the eco-efficiency of the business by providing the right technology.
